8'x12' Outer tubing 38mm 1½" tubing sold plastic temporary fence panels Spacing 2¼"x2¼"(57mmx57mm) x 3.00mm

Chain Link Fencing is incredibly strong, durable, secure and cost-effective, is also available in a range of Colors and

Sizes.C hain link fence can even be fitted with Privacy Slats.C hain Link Fence Privacy Slats are

available in a range of sizes and colours.

1. Details

Material − Manufactured from High-Density Polyethylene (HDPE) and UV stabilized to protect the slats from

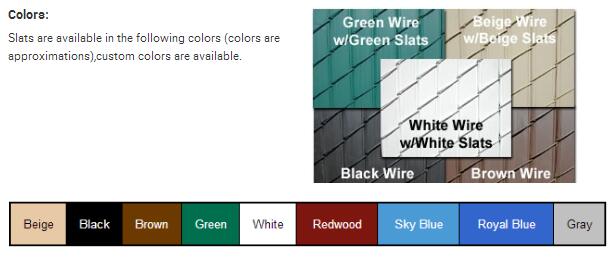

the sun’s ultraviolet rays. Colours − Available in 9 standard colours (see colour guide below). Custom color

matching available. Strength − All slats are reinforced with a centre leg. This provides for a strong,

durable slat that allows easy installation and helps hold its shape for years to come. Quantity Per Package

− You’ll get enough slats to cover ten linear feet of fence per bag; Guaranteed! Acceptance − All materials used

in slats meet ASTM Specifications. WIND LOAD & PRIVACY FACTOR: Approximately 75%. 10-year

warranty Ribbed slats for added strength and durability.

Our Economy slat is one of the most economical chain-link enhancement products available in the market today.

Manufactured using the same durable outdoor plastic as our standard tubular fence slats, this single wall "M" shape slat

will give you the visual screening and colour enhancement you desire at a very affordable price. Economy slats also

use our patented Bottom-Locking system for fast and easy installation. DESIGN: Compact and lightweight,

Economy's unique shape enables the slat to self-stack. A package the size of 2" x 4" contains enough material to

cover approximately (10) ten linear feet, making it easy to ship and efficient to store.

STANDARD HEIGHTS: 4, 5, 6, 7, 8, 10 and 12 feet. Special height weres were available upon request.

SLAT LENGTH: 3 1/2" shorter than the overall height of the fence.

WIND LOAD AND PRIVACY FACTOR: Approximately 75%

HDPE Technical Properties Melt Index: (.6) A low melt index is an indication of improved

stress and cracks resistance. Density: (.957) Polyethylene varies from .914 to .960 in density.

A higher density yields maximum stiffness without becoming brittle.

Minimum Temperature: (-76° F) Polyethylene will stay flexible even at this extreme temperature.

Maximum Temperature: (250° F) Polyethylene will not distort until reaching this temperature.

Tensile Strength: (3,700 psi) Material will not suffer distortion at lesser impacts or loads.

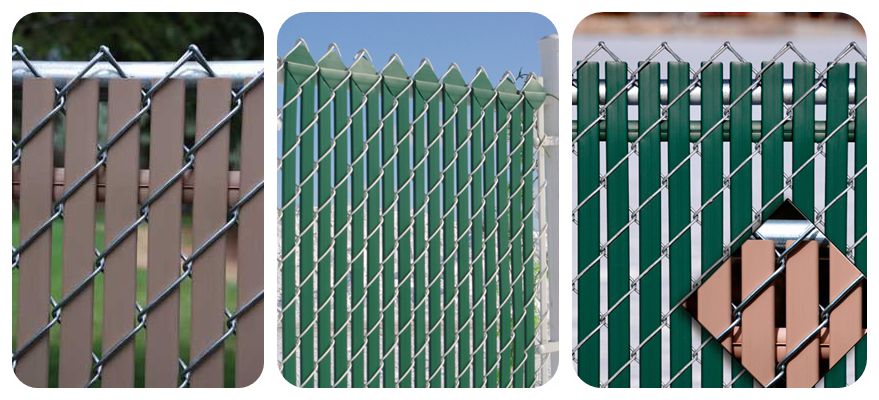

2. Chain Link Fence Privacy Slats (Top Locking):

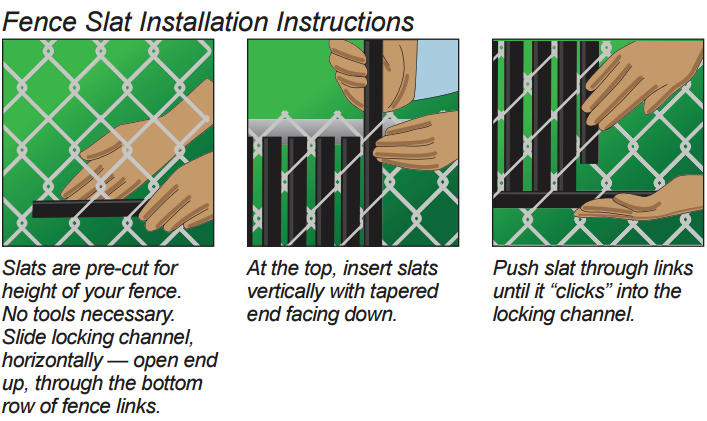

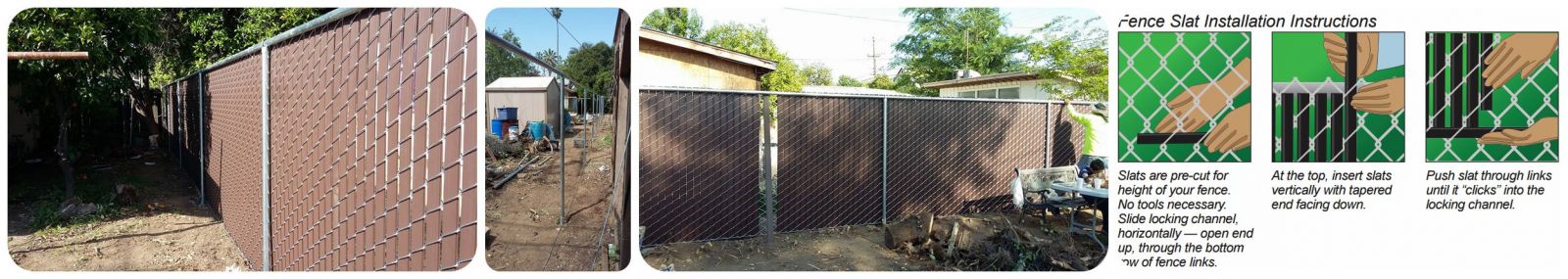

3. Chain Link Fence With Slats Installation:

Easy “three-steps” process

Step 1 Insert the patented locking strip horizontally into the top section of the 2nd diamond down from the top of the 2nd diamond up from the bottom of the chain link fence.

Step 2 Insert the slats vertically until the patented notch snaps itself into the locking strip.

Step 3 Go home early today!

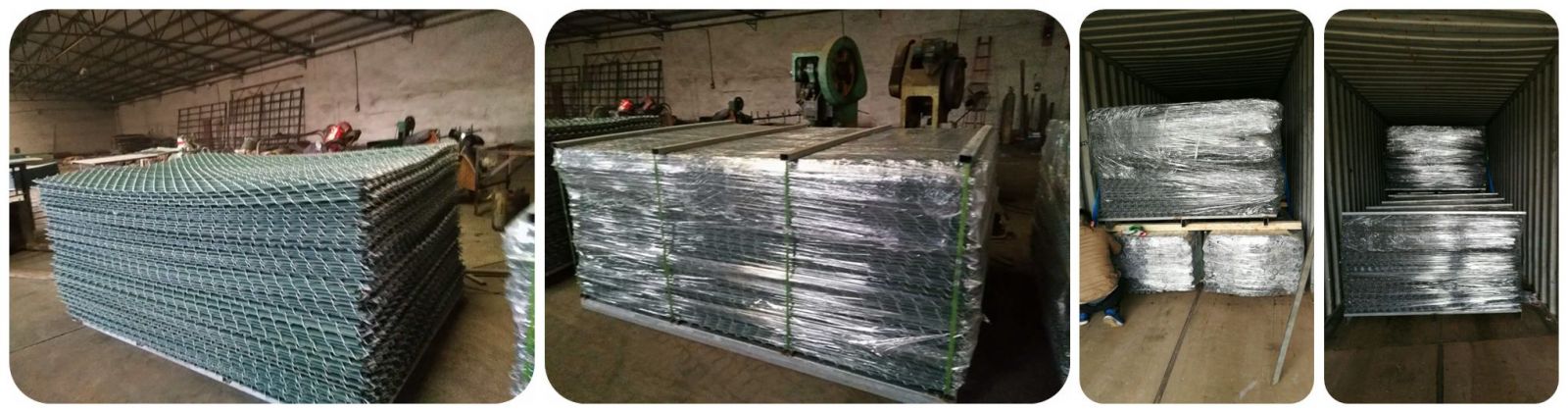

4. Chain Link Fence With Slats Loading and Packing:

8'x12' Outer tubing 38mm 1½" tubing sold plastic temporary fence panels Spacing 2¼"x2¼"(57mmx57mm) x 3.00mm Images
