Close Mesh 358 Security Fence

Name: Close Mesh 358 Security Fence
Brand: LNF-High Security Wire Fence
Price: 18.66 USD

China Close Mesh 358 Security Fence wholesale

Brand Name : LNF-High Security Wire Fence

Model Number : 3"x0.5"x 8ga wire euqal to 12.70mm x 76.20mm x 4.00mm wire

Certification : ISO

Place of Origin : South African Design China Made

MOQ : 500 liner meter

Price : 18.66$ per liner meter

Payment Terms : TT30% deposit balance 70% at sight of finished products

Supply Ability : 10000 liner meters

Delivery Time : 7 work days

Packaging Details : All metal Pallets

Materials : Q235 Steel

Mesh Opening : 3" x 0.5" x 8gague wire,12.70mm x 76.20mm

Diameter : 4.00mm ,3.00mm

Size : Available Customized

Color : All RAL color card

Treatment : Hot Dipped Galvanized Or Powder Coated

V Beams : Available

Sample : Free but pay freight cost

Accessoires : Clamp,Post ,Y arm for barb wire

Feature : Anti ,Resistant ,Cut ,Climb

Main Market : Africa ,Oceania ,Aisa

Salt Spray Test : Pass

Contact Now

Close Mesh 358 Security Fence

358 mesh – as known airport fence , prison fence , is a high security mesh system widely used on high security installations such as prisons and military sites. Its has small apertures making it extremely difficult to cut the wires and near impossible to climb

2. High Security 358 Fence Specification

358 Fence	2.1m	2.4m	3.0m
Panel height	2134mm	2438mm	2997mm
Panel width	2515mm	2515mm	2515mm
Mesh size	12.7 x 76.2mm	12.7 x 76.2mm	12.7 x 76.2mm
Horizontal wire	4mm	4mm	4mm
Vertical wire	4mm	4mm	4mm
Panel weight	50kg	57kg	70kg
Posts	60 x 60 x 3 mm	60 x 60 x 3 mm	80 x 80 x 3 mm
Post length	2.8m	3.1m	4.0m
Clamp bar	40 x 6 m slotted	40 x 6 m slotted	40 x 6 m slotted
Fixings	8 galv bolt c/w Permacone secruity nut
No. of fixings	8	9	11

358 Fence Panels:Manufactured using 4mm wire welded at each intersection creating a strong and durable panel, the mesh aperture consists of a 76.2 x 12.7mm mesh spacing providing ultimate protection against climbing and cut-through with excellent see through visibility!

358 Fence Posts: Square hollow section posts provide both strength and safety. Plastic post-tops prevent water ingress which can cause rust. Posts can be manufactured to suit the site, either to be concreted into the ground, Baseplated for fixing to a concrete base, and/or cranked to receive another panel or for razor wire

358 Fence continuous clamp bar fixing: The most secure method of securing panels to posts. A continuous 40 x 6mm flat bar clamps the mesh panel to the post, using Galvanised M8 Bolts which pass through the posts and are secured from the inside of the fence by means of anti-vandal and tamper resistant Permacone Nut.

About hot-dipped galvanized powder coated high Security 358 Anti-climb Fence for prison AnPing factory :

It's also called 358 fence or anti-climb fence, this system is extensively used when defendable space is paramount, used throughout the world in varying applications.

It is highly regarded as the most difficult fence to penetrate, providing an excellent defense against climbing and cut-through.

Typical Applications of CS hot-dipped galvanized powder coated high Security 358 Anti-climb Fence for prison AnPing factory:

1. Industrial and commercial sites

2. Airports, railways, school, local authorities

3. Public utilities, military

4. Secure units & prisons

The benefit of CS hot-dipped galvanized powder coated high Security 358 Anti-climb Fence for prison AnPing factory:

1. Anti-Climb

2. Protects against cut-through

3. Excellent visibility

4. Quick and simple installation

5. High cost-effective

6. Low maintenance costs

Specification Table of CS hot-dipped galvanized powder coated high Security 358 Anti-climb Fence for prison AnPing factory:

(Besides SPEC below, other specifications are available upon request)

Wire Diameter	4mm (8 gauge), 5mm, 6mm
Mesh Aperture	76.2mm x 12.7mm ( 3' x 0.5')
Height	1.8m, 2m, 2.4m, 2.7m, 3m, 3.5m, 4m, 5m, etc
Width	2m, 2.2m, etc
Square post	50x50mm, 60x60mm, 80x80mmm, 100x100mm, etc
Surface treatment	Electro galvanized, Hot-dipped galvanized, Powder coated, PVC coated
Color	Green ( Standard RAL 6005), White, Grey, Blue, etc
Top	Barbed wire, Razor wire can be used on top to make it higher security

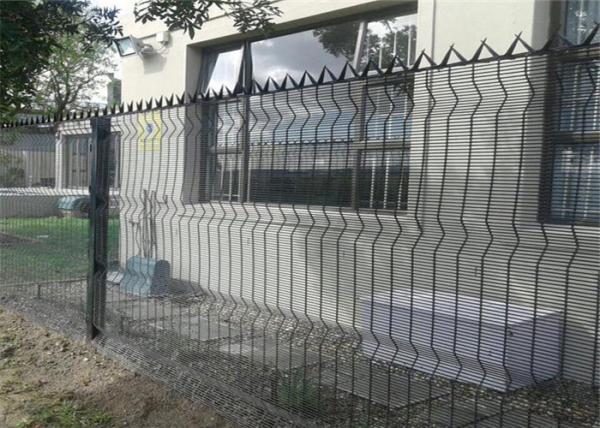

Close Mesh 358 Security Fence Images
