358 Security Wire Mesh Fence/ Welded Wire Mesh Panels

358ACF-01: Black PVC coated 358 anti-climb fence is more in harmony with residential and commercial places.

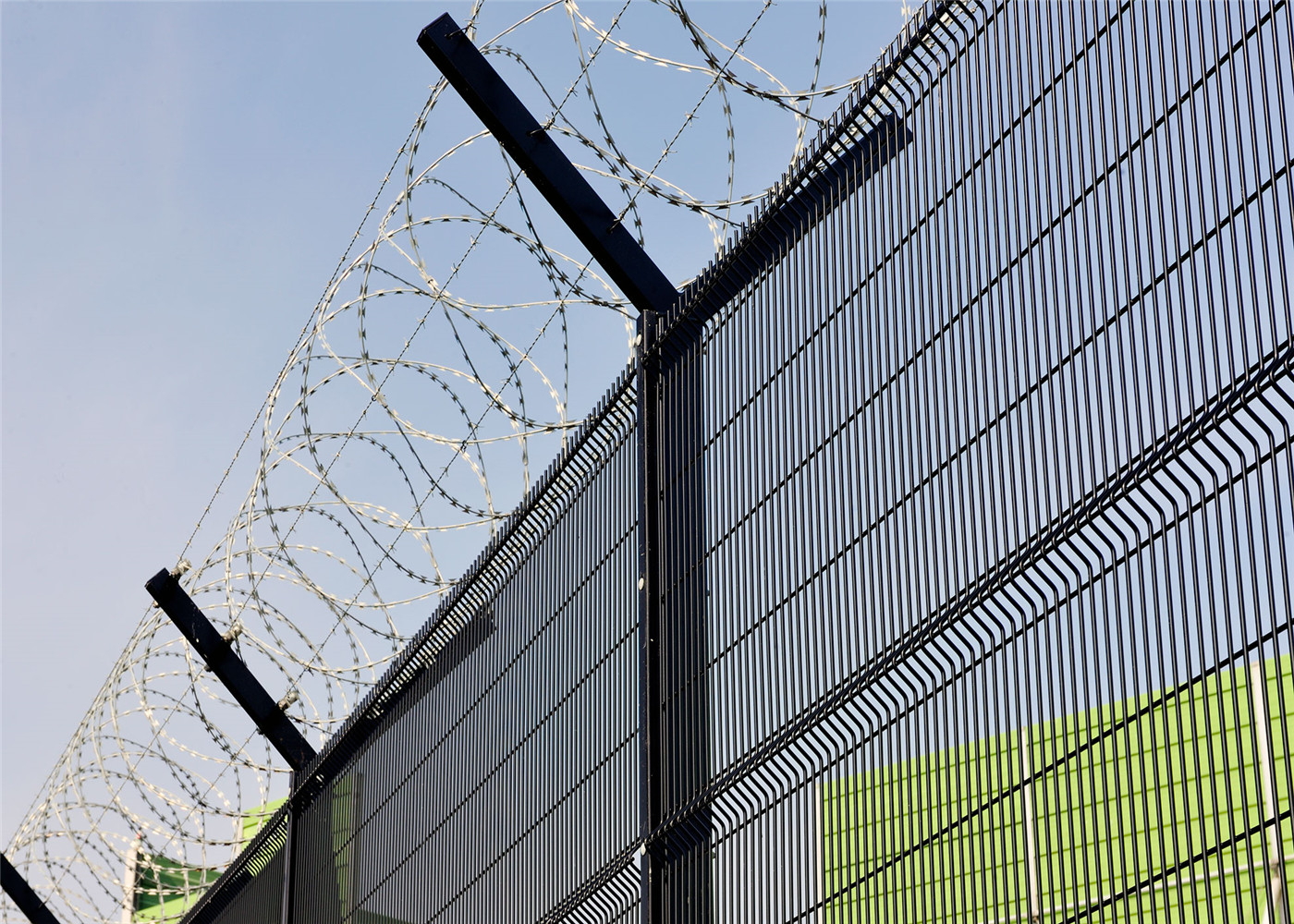

358ACF-02: Together with razor wire, 358 anti-climbing fence deters intruders and provides a high degree of security.

• Anti-climb: The opening holes are so small that even fingers cannot penetrate in.
• Anti-cut: Bolt cutter and wire cutter cannot make itself through the narrow holes, therefore the fence won't be destroyed.
• Strong welded point: The welded joints are fixed firmly, won't split by natural human and nature force.
• Smooth surface: The panel finish surface is well-proportioned for a decorative effect.
• Durable: The panel sheet is galvanized uniformly and PVC coated, which ensures a long service life.

• 358 mesh panel size
  • Mesh pattern: 76.2 mm (3") × 12.7 mm (0.5").
  • Wire diameter: 4 mm horizontal wire and vertical Wire.
  • Weld strength: range 540–690 N/m2.
  • Surface treatment: 358 mesh fence panels made from galfan wire, then PVC powder coating (Min. 100 micron), or PVC powder painting. It provides additional protection and increases the potential life span.
  • Colors: green (RAL 6005), black (RAL 9005). All RAL color is available.
  • Accessories: posts, post base feet, barbed wire, slotted clamp bars, post cap, bracket, bolts, spacer, nuts, washer, clips, etc.
• Fence posts
  • Material: high grade steel for maximum strength and rigidity.
  • Post section: 60 × 60 mm, 80 × 80 mm, 100 × 100 mm, 120 × 120 mm.
  • Post Plate thickness: 2.5 mm or 3.0 mm, 4.0 mm, 5.0 mm.
  • Finish: inside and outside galvanized (Min. 275 g/m2), subsequently covered with a polymer powder (Min. 60 micron ).
  • Colors: same as panel.
  • Post cap: metal caps or plastic cap.
  • Metal clips and clamps are hot dip galvanised then powder coating in green or black color.

• Our fence wire diameter varies from 2–6.5 mm, mesh opening could be 75 mm × 12.5 mm, 100 mm × 15 mm, other opening size available under request.
• Maximum width is 2.515 m. 2.0 m and 2.2 m is also available under request.
• Fence height varies from 2.0 m to 5.2 m.
• 3 m height fence is usually used in school, residential and recreational sites, 5.2 m height used in prison and military establishments.
• Our 358 high security mesh fencing could be manufactured with double layers of vertical wires in order to satisfy the highest level of security requirement.

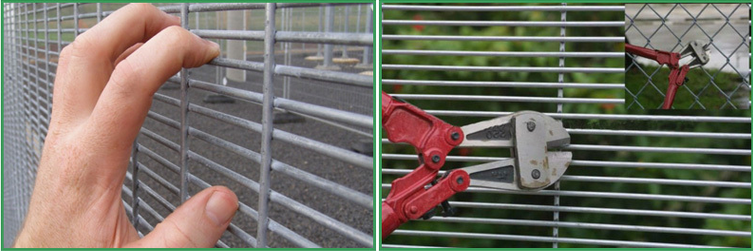

358ACF-03: Bolt cutter cannot even stretch into small hole of 358 fence, no mention of cutting.

358ACF-04: The wire diameter and mesh opening follow strictly the standard size.

• Panels could be overlapped 75 mm minimum at each post and fastened with a slotted clamp bar and bolts. (see picture 358FI-05 below)
• Panels could be bind together without overlap but by brackets. (see picture 358FI-06 below)
• Spacing between brackets in post would better be 0.3 m.
• A full installation guide is available under request.

358ACF-05: Two panels were installed into a narrow post with 75 mm overlap for a solid structure.

358ACF-06: Two panels were installed into a wide post with brackets without overlap but still firm.

358ACF-07: 358 mesh fence panels packed in pallets and then enveloped by plastic film for transportation and storage.

• 358 security fence named from its size 3'' × 0.5'',8Ga(BWG)=4mm.
• So the size is 76.2mm × 12.7mm ×4mm(mesh length × height × dia.)
• 358 security fence is firm, not easy though, hard to cut and climb.
• It is famous as one of the most secure fences, named security fence or high strength fence.
• 358 fence can also adopt the bending form, improve the appearance.

• Posts are galvanized to BS EN 1461 as standard
• Panels are Galvan zinc alloy coated as standard
• Posts and panels powder coated to BS EN 13438 in one of our standard colours at an extra cost
• Powder coating of panels and posts to any other (non-standard) BS or RAL colour to special.

• Anti-climb: mesh firm, not enough to put in a finger or toe
• Anti-cut: high strength wire and dense mesh makes the cutting tool is difficult to cut
• High strength: superior welding process makes the solder joint

• The bridge anti-climb mesh
• The psychiatric hospital security fence
• Prison safety fence
• Factory machinery protection
• Pedestrian safety fence
• The airport security fence
• Shipping port security fence
• The high-end residential security fence

FAQ

1. How can I get a catalogue?

Please call us or send us an email. We will reply within 24 hours.

2. Is customized product available?
Besides common size, we accept customized fabrication. Just let us know your requirements.

3. How long after I place an order can I expect delivery?
This depends on the product chosen. We will always try to fit in deliveries to meet customer requirements, so if you have a specific deadline please talk to us. Some of our products are custom made, so will have a longer delivery time, but we can give you an estimated delivery date at the time of placing your order. We aim to complete the majority of deliveries within 15 days.
