3d 358 welded wire mesh fence

Name: 3d 358 welded wire mesh fence
Brand: LNF-ClearVU Wire Fence
Price: 18.88 USD

China 3d 358 welded wire mesh fence wholesale

Brand Name : LNF-ClearVU Wire Fence

Model Number : 3"x0.5"x 8ga wire euqal to 12.70mm x 76.20mm x 4.00mm wire

Certification : ISO

Place of Origin : South African Design China Made

MOQ : 500 liner meter

Price : 18.88$ per liner meter

Payment Terms : TT30% deposit balance 70% at sight of finished products

Supply Ability : 10000 liner meters

Delivery Time : 7 work days

Packaging Details : All metal Pallets

Materials : Q235 Steel

Mesh Opening : 3" x 0.5" x 8gague wire,12.70mm x 76.20mm

Diameter : 4.00mm ,3.00mm

Size : Available Customized

Color : All RAL color card

Treatment : Hot Dipped Galvanized Or Powder Coated

V Beams : Available

Sample : Free but pay freight cost

Accessoires : Clamp,Post ,Y arm for barb wire

Feature : Anti ,Resistant ,Cut ,Climb

Main Market : Africa ,Oceania ,Aisa

Salt Spray Test : Pass

Contact Now

3d 358 welded wire mesh fence

Clearvu also called 358 high security wire fence , developed in collaboration with building professionals and DOD testing agencies, is the only design inspired and recognized high security barrier in the world.

With this unique, clearvu's crisp, unobtrusive finish improves the look of any facility.

In addition to unparalleled appearance, durability and cost-effectiveness. Clearvu is approved as a type III fence system - in line with the specifications detailed by the national key and police advisory services.

Cochrane's unique galvanizing process and our patented marine fusion bonded coating provide a 25 year maintenance free life (under normal conditions).

It is considered the most advanced fence in the world

Protect walls in invisible form
Highly transparent / unobtrusive
Difficult to cut
It's hard to climb
25 year life guarantee under normal environment
Type 4 fence
patent protection

1.product description of a security fence
made from a type of strong welded mesh panel with a small mesh opening. It is extremely difficult to penetrate and difficult to attack using conventional hand tools. Has the features of anti-climbing and anti-cutting. The fence name 358 comes from its panel mesh opening 3" × 0.5" × 8 gauge - approximate to 76.2 mm × 12.7 mm × 4 mm mesh opening.
2. security fence specification
Mesh pattern: 76.2 mm (3") × 12.7 mm (0.5") resistance welded well at each intersection
Wire diameter: 4 mm horizontal wire and vertical Wire.
Weld strength: range 540-690 N/m2
Surface treatment: 358 mesh fence panels made from GALFAN wire, then PVC powder coating (min. 100 microns), or PVC powder painting. It provides additional protection and increases the potential life span.
Colours: Green RAL 6005, or Black RAL 9005.
Installation: Overlapped 75 mm minimum at each post for securing with slotted clamp bars and M8 diameter bolts.

Fence Height(M)	Panel Size(H*W)	Post(HSizeThick)	Clamp Bar(HWThick)	Inter or comer clamp No(PCS)
2.0	2007mmx2515mm	2700x60x60x2.5mm	2007mmx60x5.00mm	7 or 14
2.4	2400mmx2515mm	3100x60x60x2.5mm	2400mmx60x5.00mm	9 or 18
3.0	2997mmx2515mm	3800x80x80x2.5mm	2997mmx80x6.00mm	11 or 22
3.3	3302mmx2515mm	4200x80x80x2.5mm	3302mmx80x6.00mm	12 or 24
3.6	3607mmx2515mm	4500x100x60x3.0mm	3607mmx100x7.0mm	13 or 26
3.6	3607mmx2515mm	4500x100x100x3.0mm	3607mmx100x7.00mm	13 or 26
4.2	4204mmx2515mm	5200x100x100x4.0mm	4204mmx100x8.0mm	15 or 30
4.5	4496mmx2515mm	5500x100x100x5.0mm	4496mmx100x8.00mm	16 or 32
5.2	5207mmx2515mm	6200x120x120x5.0mm	5207mmx100x8.00mm	18 or 36

3d 358 welded wire mesh fence

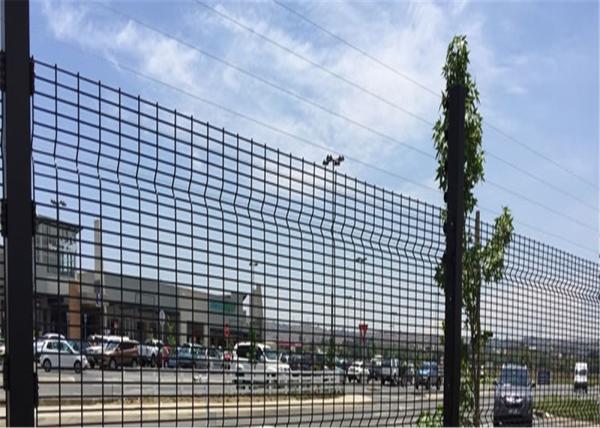

3d 358 welded wire mesh fence Images
