3D Green Pvc Coated Welded 358 Security Wire Mesh Fence

Name: 3D Green Pvc Coated Welded 358 Security Wire Mesh Fence
Brand: LNF-ClearVU Wire Fence
Price: 18.88 USD

China 3D Green Pvc Coated Welded 358 Security Wire Mesh Fence wholesale

Brand Name : LNF-ClearVU Wire Fence

Model Number : 3"x0.5"x 8ga wire euqal to 12.70mm x 76.20mm x 4.00mm wire

Certification : ISO

Place of Origin : South African Design China Made

MOQ : 500 liner meter

Price : 18.88$ per liner meter

Payment Terms : TT30% deposit balance 70% at sight of finished products

Supply Ability : 10000 liner meters

Delivery Time : 7 work days

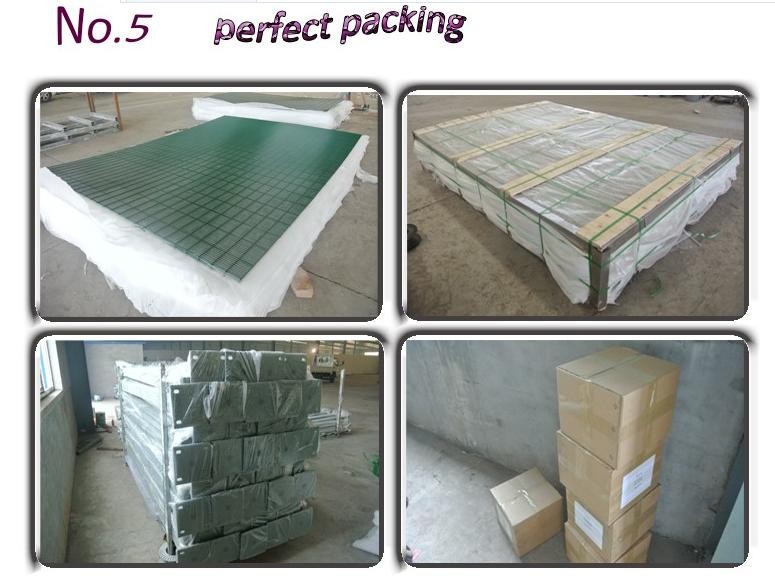

Packaging Details : All metal Pallets

Materials : Q235 Steel

Mesh Opening : 3" x 0.5" x 8gague wire,12.70mm x 76.20mm

Diameter : 4.00mm ,3.00mm

Size : Available Customized

Color : All RAL color card

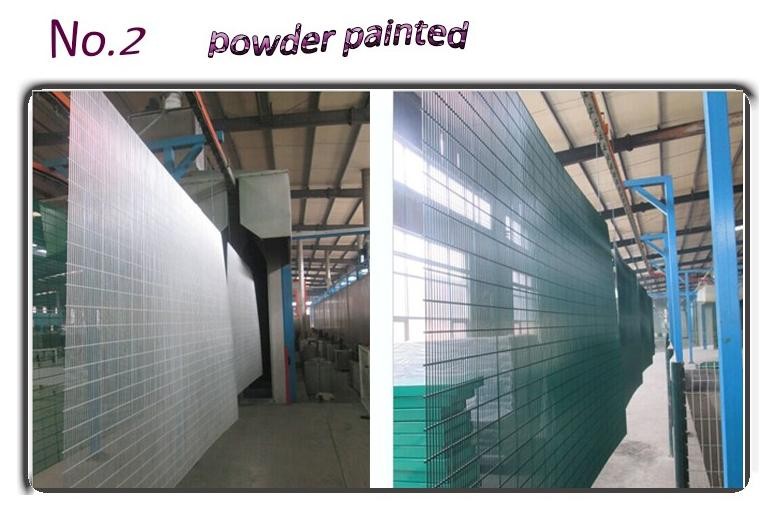

Treatment : Hot Dipped Galvanized Or Powder Coated

V Beams : Available

Sample : Free but pay freight cost

Accessoires : Clamp,Post ,Y arm for barb wire

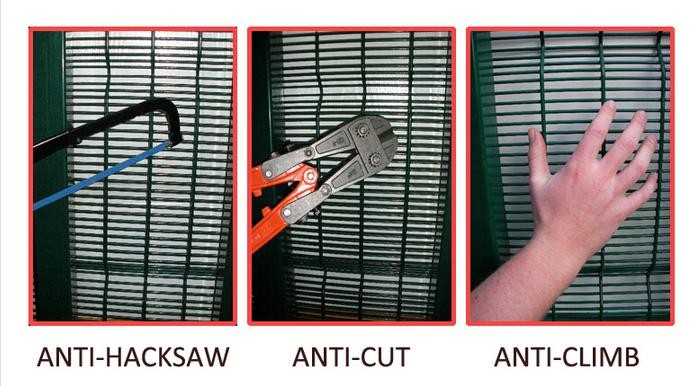

Feature : Anti ,Resistant ,Cut ,Climb

Main Market : Africa ,Oceania ,Aisa

Salt Spray Test : Pass

Contact Now

3D Green Pvc Coated Welded 358 Security Wire Mesh Fence

Specification:

♦Panel

Mesh Size

Hight

Width

Line Wire x Cross Wire

(Nos. of Curves)

Post Length

Nos of Brackets

76.2x12.7

75x12.5

101.6x12.7

1800

2500/2750/3000

3.0x4.0

3.2x4.0

3.4x4.0

2600

2000

2500/2750/3000

2700

2200

2500/2750/3000

2800

2400

2500/2750/3000

3000

2700

2500/2750/3000

3500

3000

2250/3000

4000

2250

5200

♦The above description is the specifications of Mesh Panel-3D.

The security 358 fence is divided into three categories : Mesh Panel-3D, Mesh Panel-2D and Mesh-2D Plus.

2D panel without curves.

2D plus with one additional horizontal wire every 11 mesh.

The wire thickness, panel height and panel width is different, please kindly contact us for the details information.

♦Post

	P1-SHS	P2-IPE	P3-RHS	P4-C+F
	Square post	IPE post	Rectangle post	C post with flat bar
Popular size A	60x60mm	100x55mm	60x80mm	60x80mm
Popular size B	80x80mm	100x68mm	80x100mm	80x100mm
Popular size C	100x100mm	120x74mm	100x150mm	100x150mm
Wall thickness	1.2-1.5mm	1.2-2.0mm	2.5-5.0mm	2.0-5.0mm

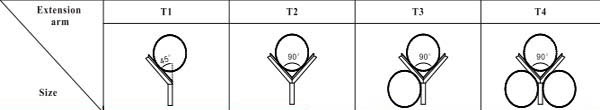

♦Razor wire and Angel arm

3D Green Pvc Coated Welded 358 Security Wire Mesh Fence

♦The angle arm is unnecessary, you can consider it to be more security.

♦Surface Treatment

ITEM	ST1	ST2	ST3	ST4	ST5
Mesh	PRE-EDG+PP	PRE-HDG+PP	PRE-GALFAN+PP	HDG	HDG+PP
Post	PRE-HDG-PP			HDG	HDG+PP

♦PP:Polyester powder coated;EDG:Electric dip galvanized;HDG:Hot dip galvanized;

♦ST2 PRE-HDG,zinc coating have 3classes(Classes one : 40-60g/sqm; Classes two : 80-100g/sqm; Classes three : 200-300g/sqm);

♦ST3 GALFAN ,zinc aluminum(95%ZN5%AL);

♦ST4 HDG ,zinc layer thickness 75-100um.

Fence Panels

3mm horizontal x 4mm vertical diameter high tensile wires

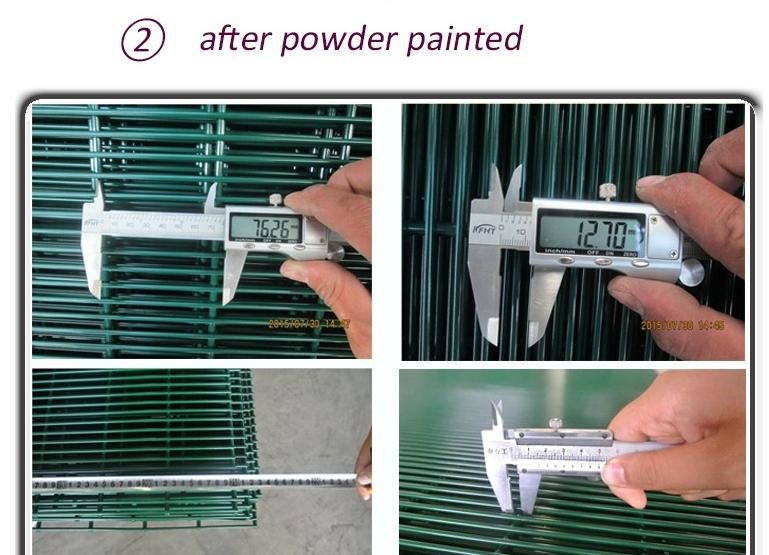

Aperture size - 76,2mm x 12,7mm

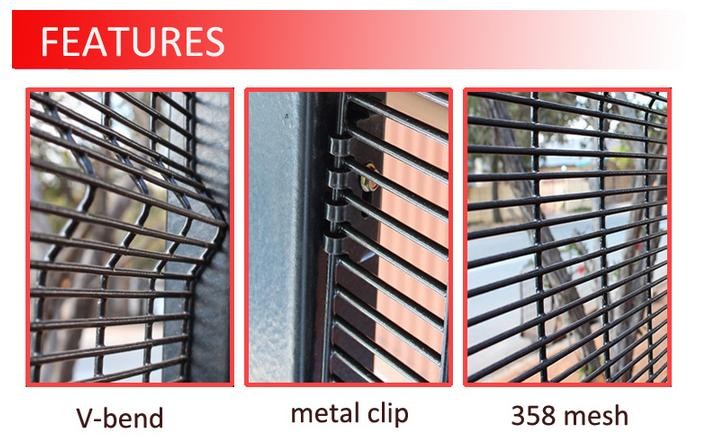

Panels reinforced with 4 x 50mm deep "V" formation horizontal recessed bands and2 x 75mm 70-degree flanges along sides.

4mm horizontal x 4mm vertical diameter high tensile wires
Aperture size - 76,2mm x 12,7mm
panel width 2515mm and height from 2000mm to 3600mm

Posts

Tapper posts with UV stabilized polymer end cap
Tapper: 85mm - 45mm / 150mm - 75mm

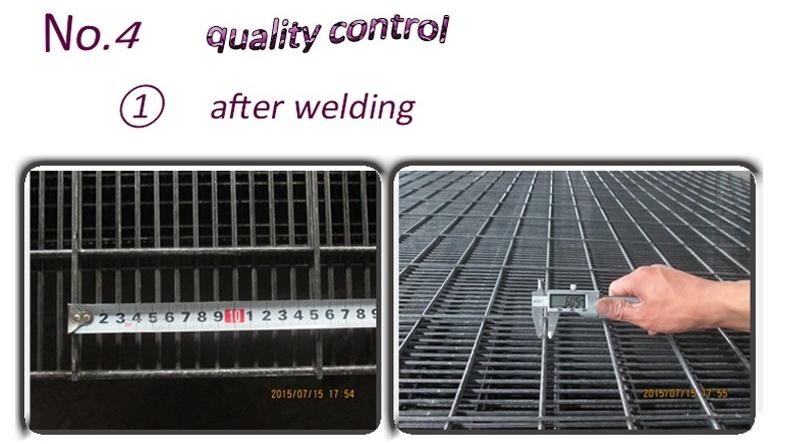

Detailed Images

3D Green Pvc Coated Welded 358 Security Wire Mesh Fence

3D Green Pvc Coated Welded 358 Security Wire Mesh Fence Images
