Anti Cut 358 Mesh Fence

Name: Anti Cut 358 Mesh Fence
Brand: LNF-Clearvu Fence
Price: 18.66 USD

Brand Name : LNF-Clearvu Fence

Model Number : 3"x0.5"x 8ga wire euqal to 12.70mm x 76.20mm x 4.00mm wire

Certification : ISO

Place of Origin : South African Design China Made

MOQ : 500 liner meter

Price : 18.66$ per liner meter

Payment Terms : TT30% deposit balance 70% at sight of finished products

Supply Ability : 10000 liner meters

Delivery Time : 7 work days

Packaging Details : All metal Pallets

Materials : Q235 Steel

Mesh Opening : 3" x 0.5" x 8gague wire,12.70mm x 76.20mm

Diameter : 4.00mm ,3.00mm

Size : Available Customized

Color : All RAL color card

Treatment : Hot Dipped Galvanized Or Powder Coated

V Beams : Available

Sample : Free but pay freight cost

Accessoires : Clamp,Post ,Y arm for barb wire

Feature : Anti ,Resistant ,Cut ,Climb

Main Market : Africa ,Oceania ,Aisa

Salt Spray Test : Pass

Contact Now

Anti Cut 358 Mesh Fence

358 mesh fencing also called anti-climb fencing, prison mesh fencing. 358 mesh is applicated widely in prison,ministry of defence, Industrial sites, ball court and etc. ’358′ comes from the measurements, 3″ × 0.5″ × 8 gauge, small apertures 76.2mm × 12.7mm is not possible for an intruder to get a foothold for climbing, or indeed for getting any cutting tool into. High standard finish (42 microns hot dipped galvanized or powder coated to BS EN 13438) can ensure that 358 mesh is durable used in various of environment.

Wire diameter: Horizontal wire: 4.0mm; Vertical wire: 4.0mm.

Mesh apertures: 76.2mm × 12.7mm.

Panel height: from 1.27meter to 5.2meter.

Panel width: 25 × 15mm.

Post size: 60 × 60 × 2.5mm, 80 × 80 × 2.5mm, 100 × 100 × 3/4mm, 120 × 120 × 5mm.

Post height: from 1500mm to 6200mm.

Finish:

Hot dipped galvanized 300g/sm or 42micron.
Powder coated to BS EN 13438.

Specification:


358 Mesh Panels		Posts
Fence	Panel Size	Section	O/A Length	Total number of fixings
height m	Height/Width mm	Section	O/A Length	Inters- 1 Clamp bar	Corners- 2 Clamp bars
1.27	1270 × 2515	60x60x2.5mm	1500	4	8
1.80	1800 × 2515	60x60x2.5mm	2300	6	12
2.0	2007 × 2515	60x60x2.5mm	2700	7	14
2.4	2400 × 2515	60x60x2.5mm	3100	9	18
3.0	2997 × 2515	80x80x2.5mm	3800	11	22
3.3	3302 × 2515	80x80x2.5mm	4200	12	24
3.6	3607 × 2515	100x100x3mm	4500	15	26
4.2	4204 × 2515	100x100x4mm	5200	15	30
4.5	4496 × 2515	100x100x5mm	5500	16	32
5.2	5207 × 2515	120x120x5mm	6200	18	36

Installation:

Clamp and M8 bolt.

Use clamp and M8 square bolts with nuts through posts.

Top barbed wire: Muyuan 358 mesh can supply top razor wire or barbed wire for further security.

Gate: Muyuan can design and make gates that suit to 358 fence with anti-climb protection.

Anti Cut 358 Mesh Fence

Product Tags:

wire mesh fencing

mesh fence panels

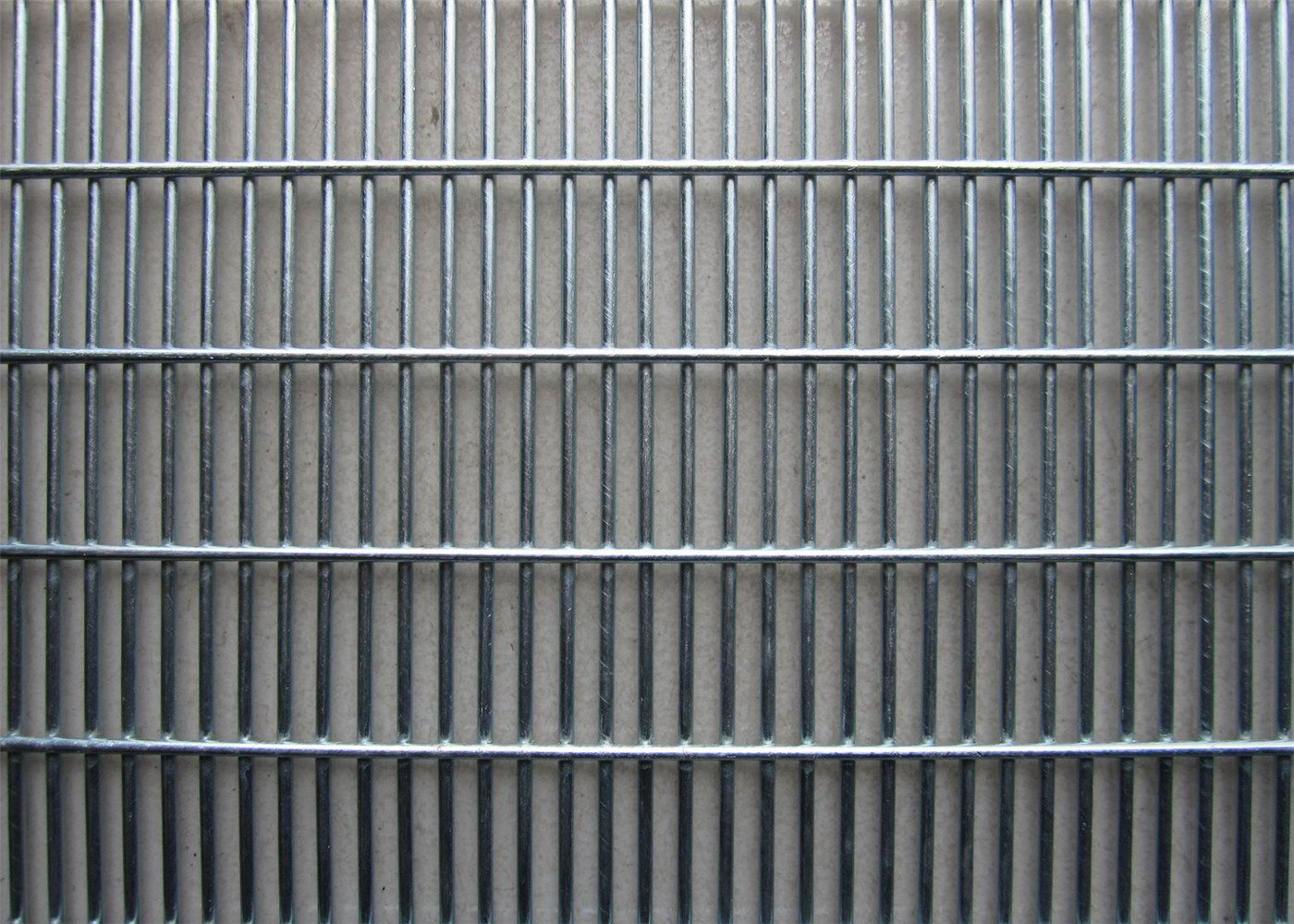

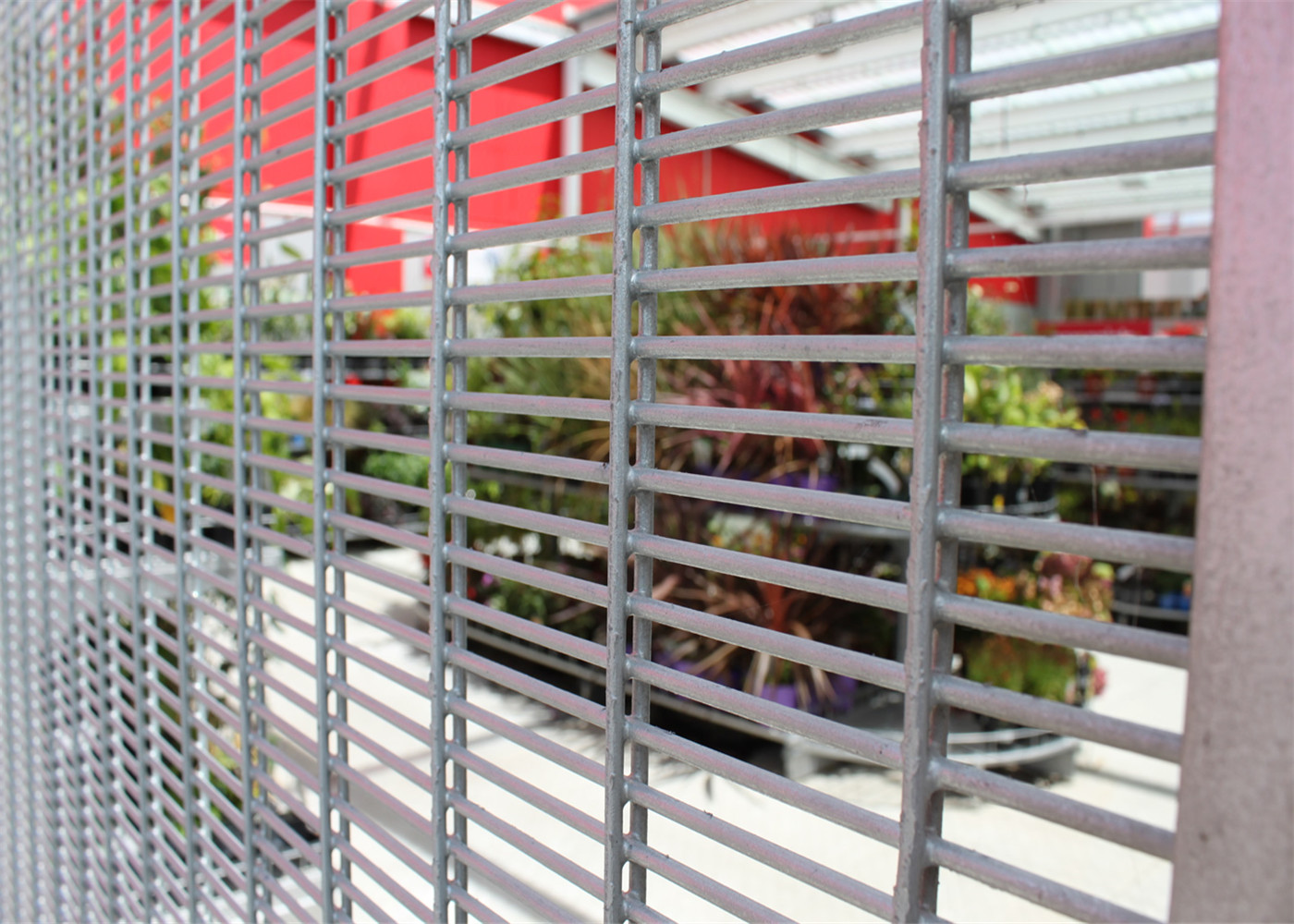

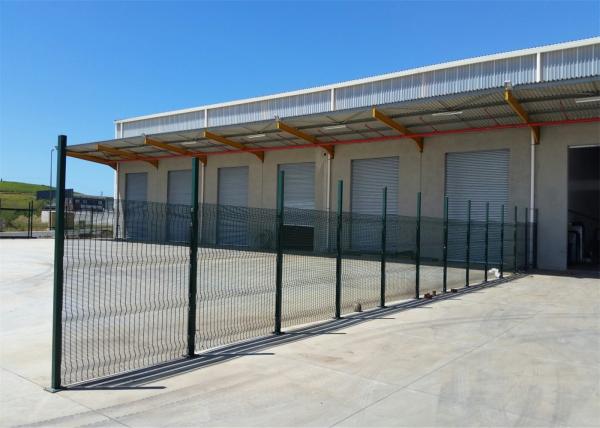

Anti Cut 358 Mesh Fence Images
