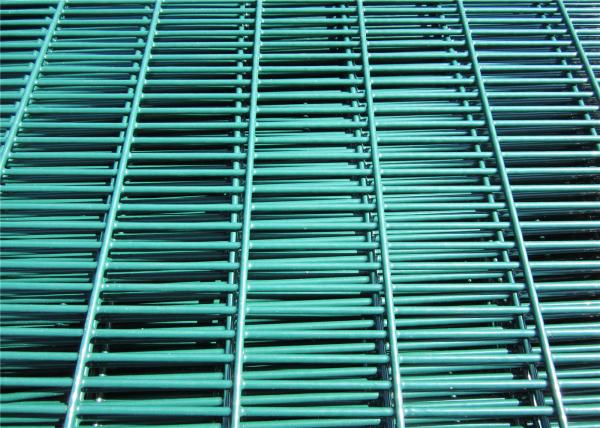

358 High Security Wire Mesh Fencing Panels

Name: 358 High Security Wire Mesh Fencing Panels
Brand: LNF-358 Fencing
Price: 16.88 USD

China 358 High Security Wire Mesh Fencing Panels wholesale

Brand Name : LNF-358 Fencing

Model Number : Clearvu 358 Wire Mesh Fence

Certification : ISO

Place of Origin : China

MOQ : 100 liner meter

Price : 16.88$-28.66$ per liner meter

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 10000 liner meter per month

Delivery Time : 14 work days

Packaging Details : Pallet

Type : Fencing,Trellis & Gates,Welded Mesh

Feature : Easily Assembled,Eco Friendly,Waterproof,Renewable Sources,Rodent Proof

Metal type : Steel,Iron,High quality carbon steel wire,Low carbon steel

Frame material : Metal

Frame finishing : Powder Coated,PVC Coated,Hot dipped galvanized,galvanized

Pressure treated wood type : Heat Treated,Nature,Chemical

Product name : 358 Welded Mesh Fence,factory galvanized steel wire welded panel 358 fence,prison 358 fence,factory direct supply cyclone wire fence price philippines

Color : green,blue,Black,yellow

Material : Galvanized Iron Wire,Low-Carbon Iron Wire,Low Carbon Steel Wire,High quality carbon steel wire,PVC coated wire

Surface treatment : Galvanized+PVC Coated,Hot Dipped Galvanized,PVC Coated,PVCcoated,Galvanized/Powder Coated/PVC coated

Application : Fence Mesh,Construction Wire Mesh,Prison,Protecting Mesh,District guardrail

Wire diameter : 4.0mm,etc

Height : 1.8m,3m,2.4m,2m,3.0m

Width : 0.5M----3.0M

Packing : Pallet,Plastic film& wooden pallet,Skecth film paper and pallet,In Rolls or Sheets

Wire gauge : 3mm,3mm - 6mm,2.0mm,3-5mm,3.0-4.0mm

Usage : Protection,Anti-climbing,house,Prison wire mesh fence

Hole shape : Square,rectangle

Length : 2.0m,Customized

Contact Now

358 High Security Wire Mesh Fencing Panels

358 anti-climb clear vu fence is a highly attractive, yet seriously secure fencing solution that is popular across a wide range of applications thanks to its excellent strength, erection simplicity, and intrusion resistant anti-climb properties. Proven in prison environments 358 anti-climb rigid mesh fencing is virtually impossible to climb, or break through. Talk to us today to see if 358 rigid mesh fencing is right for your property.

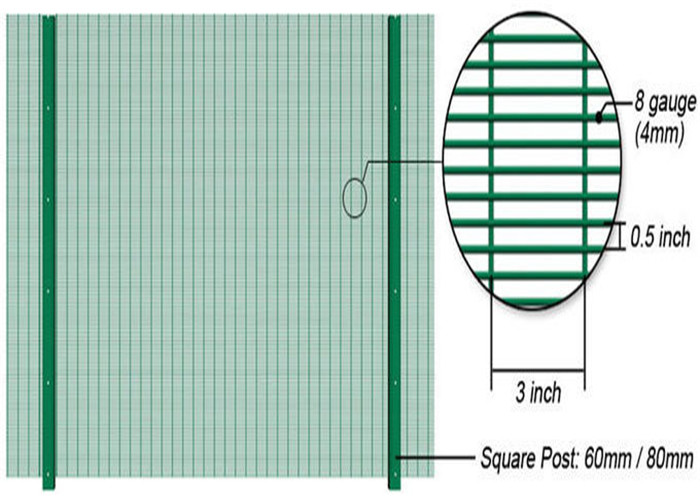

Specifications

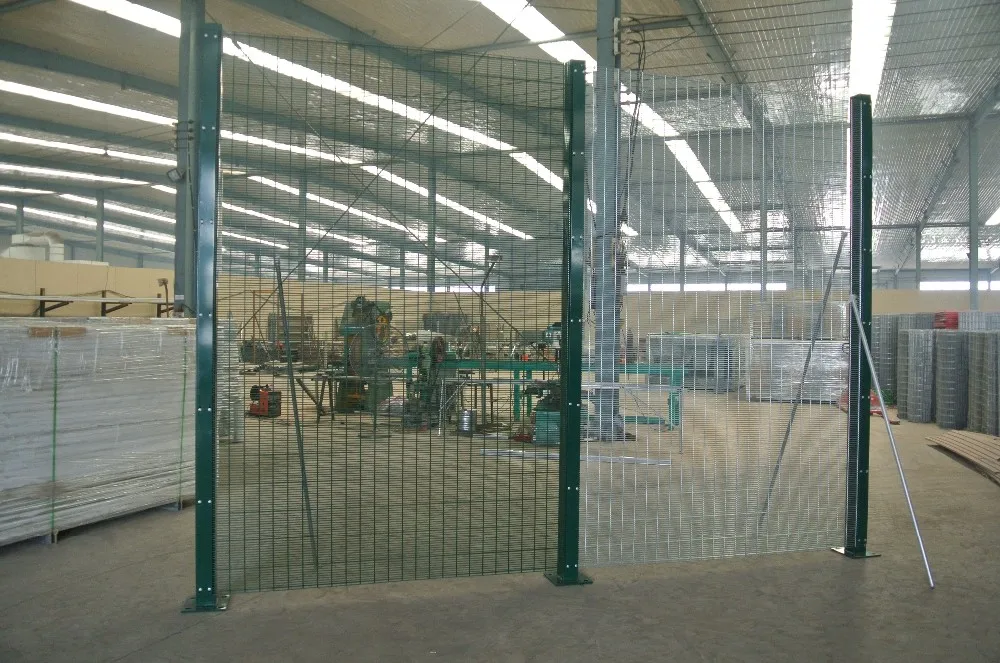

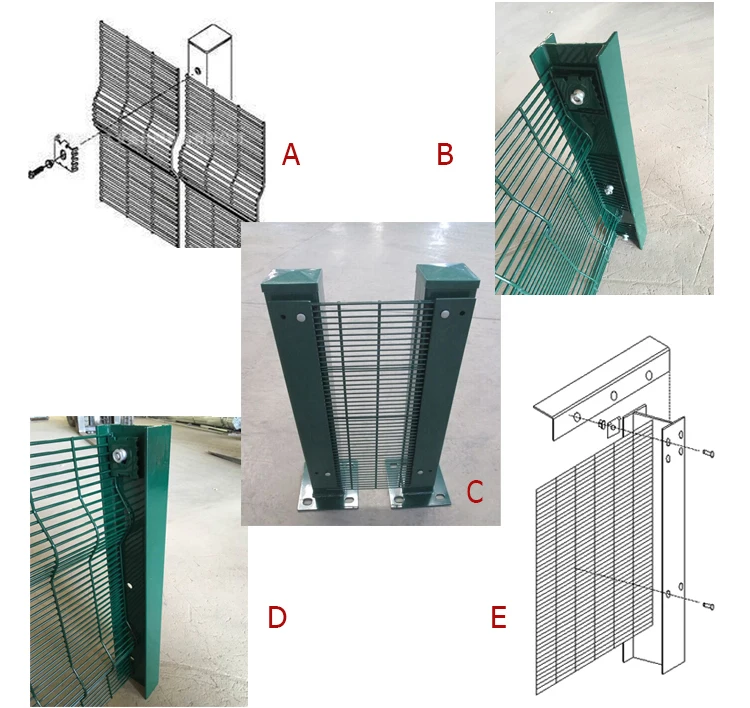

Install Way

Process

1.We use the most advanced full-automatic welding machine, after welding, the panel surface will be flat and high tensile strength .
2.The famous Akzo Noble powder makes the surface more beautiful and prolong the outdoor service life at least 15 years.

Flat Panel

V-Bend Panel

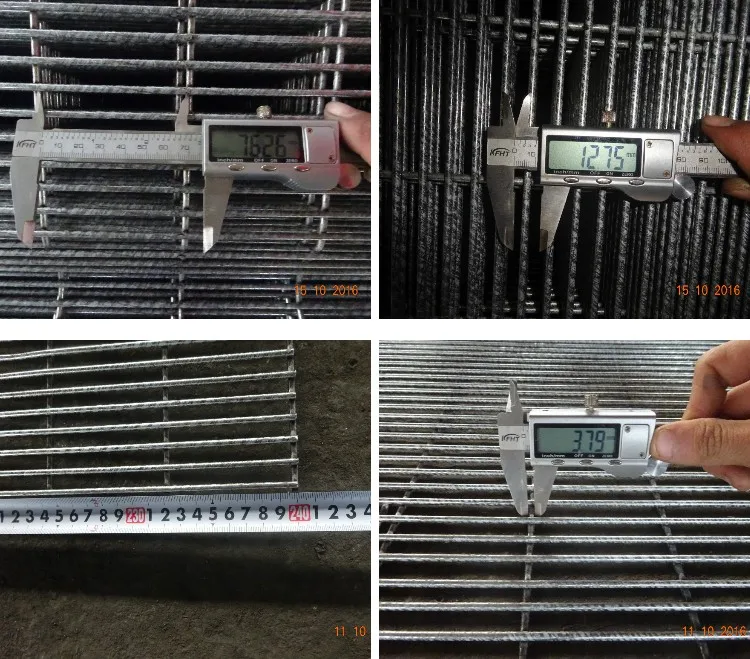

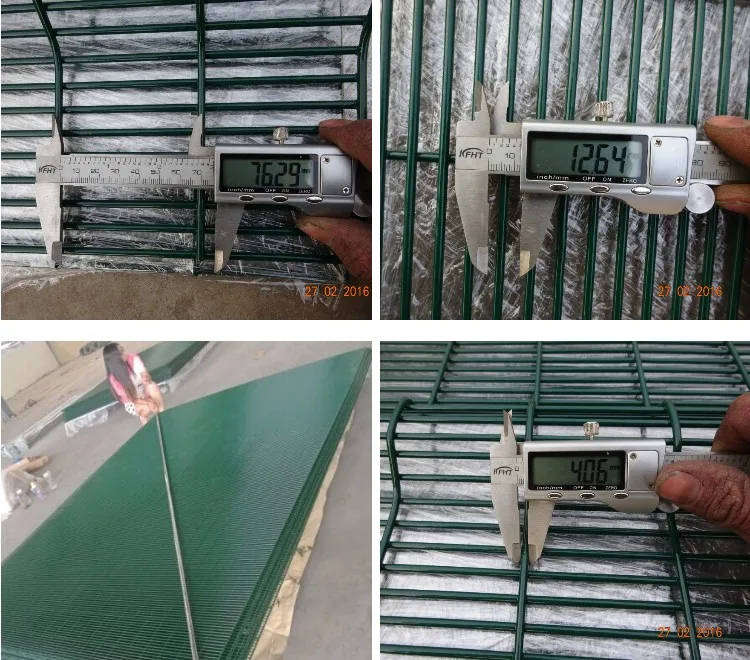

Quality control

our 3 times strict quality control from material to the finished to guarantee high quality of your order from every procedure.

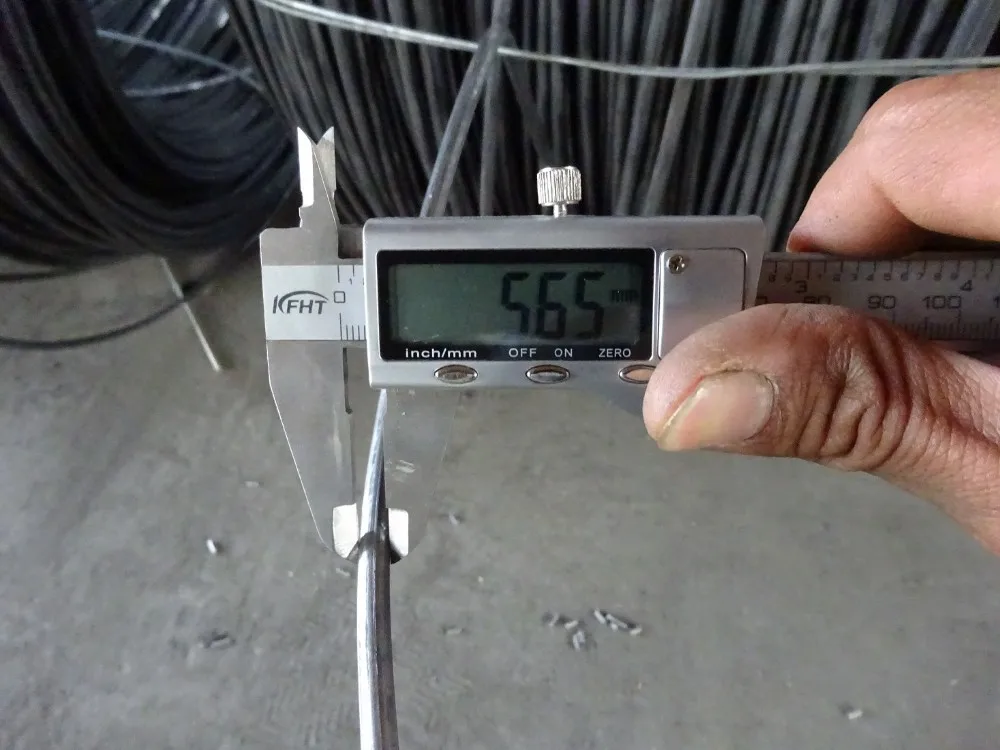

Raw material

After welding

After powder painted

Packing & Delivery

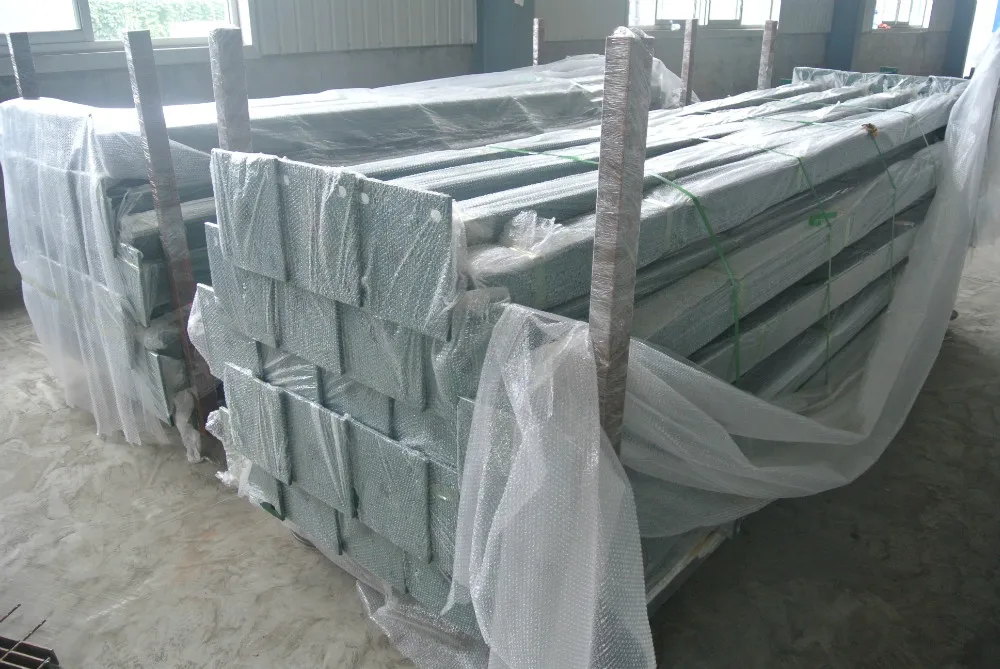

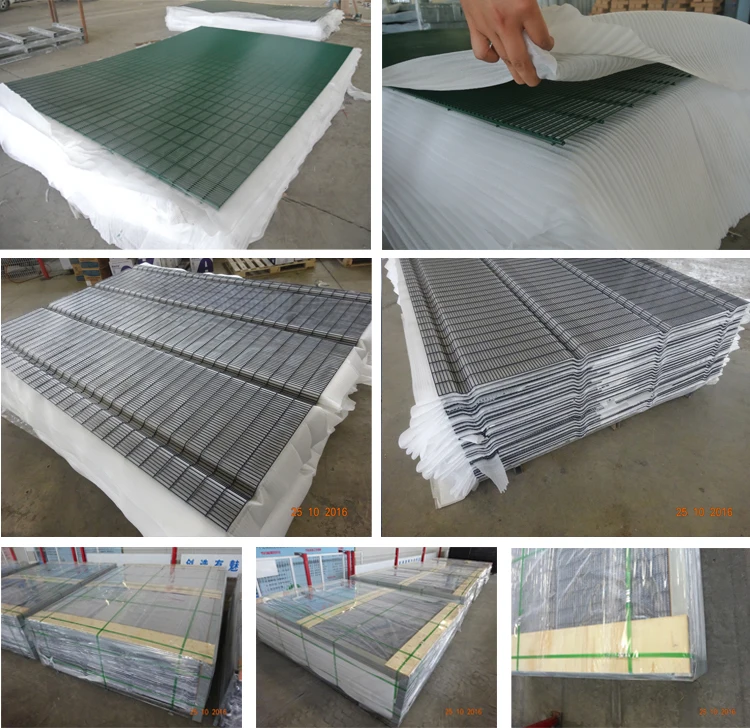

Packing

Square Post

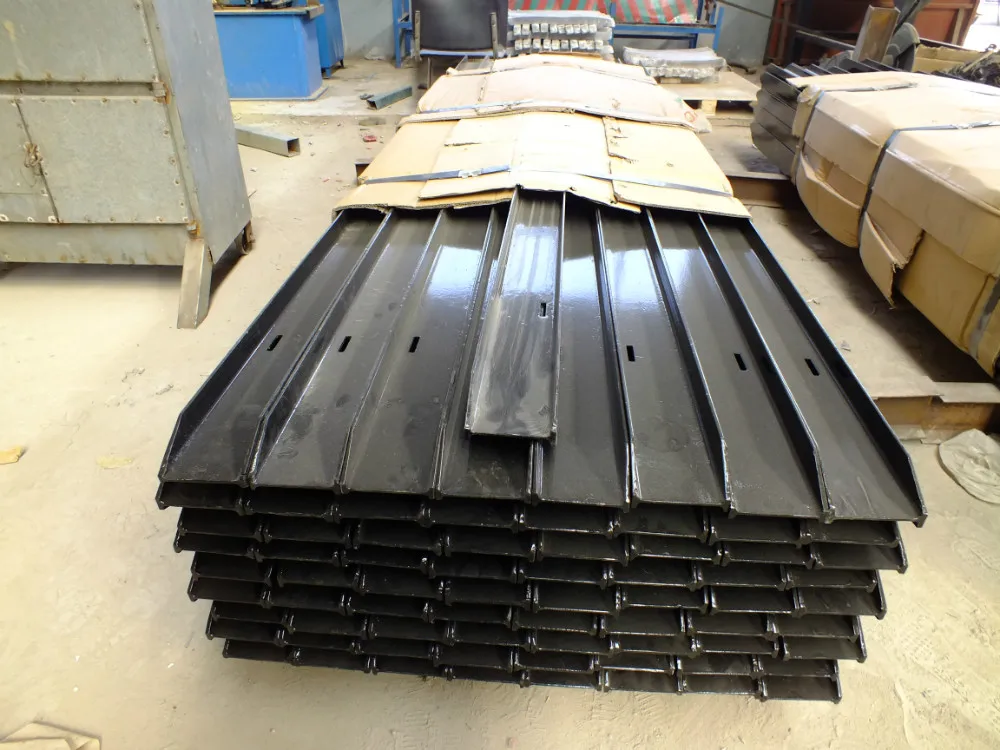

H - Post

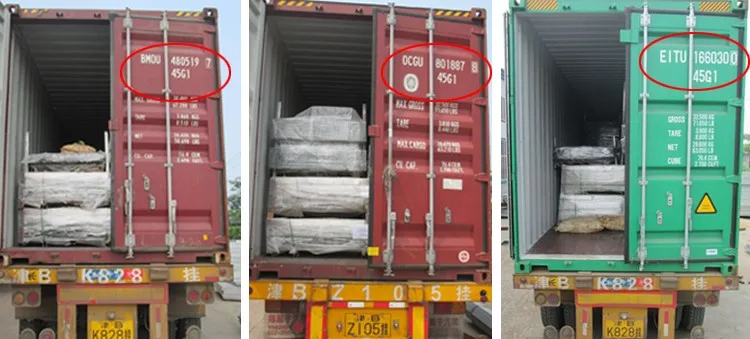

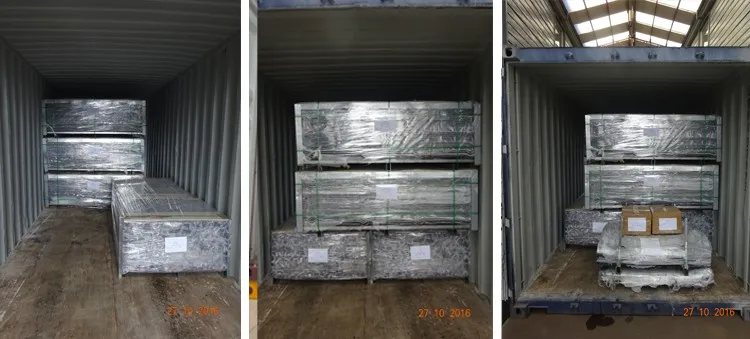

Delivery

1.Description

Anti Climb Fence
Place of Origin	Hebei,China
Color	Yellow,Red,Blue,Green
Wire Diameter	4mm
Meterial	Steel Or Iron
Mesh Opening	12.7*76.2mm
Fence Post	60120mm;6060mm
Height Of Post	1.5-2.5m And As Your Request
Height	1-3m And As Your Request
Width	As Your Request
Surface Treatment	hot dipped galvanized/powder coated/PVC coated

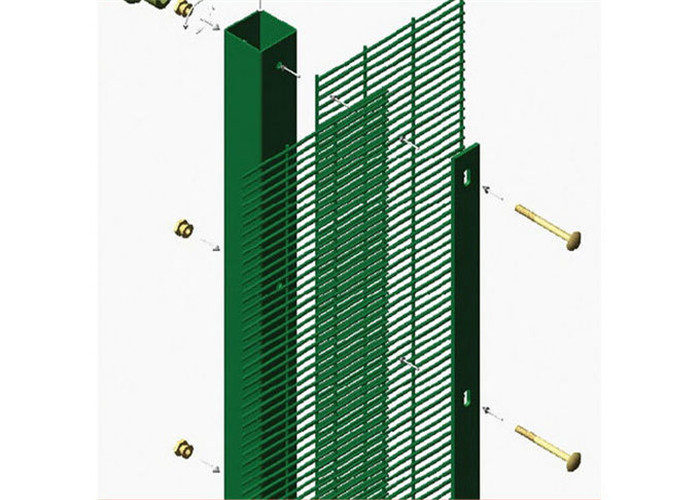

Installation	Overlapped 75mm minimum at each post for securing with slotted clamp bars and M8 diameter bolts.

Anti Climb Fence
Fence	Panel Size	Section	O/A Length	Total number of fixings	Corners- 2 Clamp bars
Height	Height/Width	Section	O/A Length	Inters- 1 Clamp bar	Corners- 2 Clamp bars
2.0	2007*2515	60x60x2.5mm	2700	7	14
2.4	2400 *2515	60x60x2.5mm	3100	9	18
3.0	2997 * 2515	80x80x2.5mm	3800	11	22
3.3	3302 * 2515	80x80x2.5mm	4200	12	24
3.6	3607*2515	100x60x3mm	4500	13	26
3.6	3607*2515	100x100x3mm	4500	13	26

Features:
Anti-climbing: more small openings, no toe or finger holds.
Anti-cut: robust wire and welded joints make cutting very difficult by bolt cutters and wire cutters.
High strength welded at each intersection.
Durable: covering Galfan and polymer powder coating ensure a long service life.
Mesh fencing specially configured to provide maximum visibility, especially used for emergency and electronic detection systems.

1. The wire fence is composed by quadrate post and high strength welded wire mesh fence.

2. 358 mesh fence's mesh size is too small to climb.

3. It can choose the top razor barbed wire to make it more security and strong.

4. The small mesh size made the whole fence more weight which means the fence is strong and durable.

2.Specification

Aperture	Wire diameter	Width	Height	Post Height	Post type	Fitting
1/2"×3" (12.7 x 76.2 mm)	3.0mm 3.5mm 4.0mm	2000mm 2200mm 3000mm	1000mm 1200mm 1500mm 1800mm 2000mm 2200mm 2400mm 3000mm	1400mm 1600mm 2000mm 2300mm 2500mm 2800mm 3000mm 3800mm	Square / rectangle shape Post	Flat Plat

3.Surface treatment

Surface treatment	Min	Max
Electric Gal	20g / ㎡	60g / ㎡
Hot dipped Gal	35g / ㎡	700g / ㎡
Powder Sprayed coating	100 microns	120 microns
PVC / PE dipped coating	400 microns	600 microns

4.Feature

High quality raw material
Strong solder joints
High security
Beautiful design
Easy assembled
Anti - corrosion

5.Application

Power station, Airport, Military base, train station
School, prison
High security area

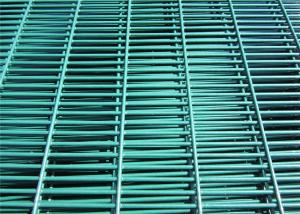

358 High Security Wire Mesh Fencing Panels Images
