358 Wire Mesh Fence Panels 4000mm Height Fence Panels

Name: 358 Wire Mesh Fence Panels 4000mm Height Fence Panels
Brand: LNF-358 Fencing
Price: 16.88 USD

China 358 Wire Mesh Fence Panels 4000mm Height Fence Panels wholesale

Brand Name : LNF-358 Fencing

Model Number : Clearvu 358 Wire Mesh Fence

Certification : ISO

Place of Origin : China

MOQ : 100 liner meter

Price : 16.88$-28.66$ per liner meter

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 10000 liner meter per month

Delivery Time : 14 work days

Packaging Details : Pallet

Type : Fencing,Trellis & Gates,Welded Mesh

Feature : Easily Assembled,Eco Friendly,Waterproof,Renewable Sources,Rodent Proof

Metal type : Steel,Iron,High quality carbon steel wire,Low carbon steel

Frame material : Metal

Frame finishing : Powder Coated,PVC Coated,Hot dipped galvanized,galvanized

Pressure treated wood type : Heat Treated,Nature,Chemical

Product name : 358 Welded Mesh Fence,factory galvanized steel wire welded panel 358 fence,prison 358 fence,factory direct supply cyclone wire fence price philippines

Color : green,blue,Black,yellow

Material : Galvanized Iron Wire,Low-Carbon Iron Wire,Low Carbon Steel Wire,High quality carbon steel wire,PVC coated wire

Surface treatment : Galvanized+PVC Coated,Hot Dipped Galvanized,PVC Coated,PVCcoated,Galvanized/Powder Coated/PVC coated

Application : Fence Mesh,Construction Wire Mesh,Prison,Protecting Mesh,District guardrail

Wire diameter : 4.0mm,etc

Height : 1.8m,3m,2.4m,2m,3.0m

Width : 0.5M----3.0M

Packing : Pallet,Plastic film& wooden pallet,Skecth film paper and pallet,In Rolls or Sheets

Wire gauge : 3mm,3mm - 6mm,2.0mm,3-5mm,3.0-4.0mm

Usage : Protection,Anti-climbing,house,Prison wire mesh fence

Hole shape : Square,rectangle

Length : 2.0m,Customized

Contact Now

358 mesh fencing - the highest level of security welded panel barrier

358 Mesh Prison Fence is made from a type of strong welded mesh panel with small mesh opening. It is extremely difficult to penetrate and difficult to attack using conventional hand tools. Has the features of anti-climbing and anti-cutting.

358 mesh fence is design combines high security and aesthetic. Panel sections are welded wire mesh with small rectangular openings 76.2 mm ×12.7 mm made from 4 mm Galfan steel wires, and welded well at each intersection, then PVC powder coating with Green RAL 6005 or Black RAL 9005 color, which provides a protective anti-corrosion properties of sections for 10 years.

358 welded mesh high security fencing is extremely difficult to penetrate and difficult to attack using conventional hand tools. Has the features of anti-climbing and anti-cutting. It is usually used for fencing where require high levels of security, such as airport, prison and military establishments. So 358 mesh is also called prison fencing. this type welded panels width is 2515 mm and height from 2007 mm upto 3302 mm. Several panels can be installed on top of each other. Thus we can get 358 fencing achieved a total

height of 6300 mm.

Specification

1). Material : Carbon Steel Wire or Galfan steel wires

2). Surface Treatment : Galvanized, PVC Coated, Powder Coated

3). Wire Diameter : 3.0-5.0mm

4). Opening Size : 76.2*12.7mm, 75*12mm, 100*15mm, etc

5). Height : 1.27m-5.2m

6). Width : 2.0m, 2.5m, 2.9m, 3.0m, etc

Stronger 358 Mesh Fence

There are two enhanced version of 358 mesh: 2D Security Fencing and 3D Security Fencing. 2D fence panels increase strength by 6 mm vertical wire and additional 4 mm wires at 152.4 mm centers on the inside face. So it has double horizontal wires at 152.4 mm centres. This structure makes the fence panel very rigid and has a higher level of strength and security than common 358 mesh fence. 2D Security Fencing is widely used for schools, industrial sites, infrastructure, and high security areas. While ,But 3D security fence enhanced its safety and appearance level with pressed horizontal 'V' shaped beams. It is a unique barrier solution which combines a high level of safety and aesthetic appearance

Features of 358 Fence

1). Aesthetically pleasing

2). Rust and corrosion proof powder coat finish

3). Variety of powder coat finish colours

4). prevention of thievery

5). Long Using life

Applications of 358 Fence

* Prison

* Airports

* Commercial sites

* Factories and warehouses

* Hospitals

* Military sites

* Parking places

* Penitentiaries

* Ports

* Railway stations

* Sports stadiums

358 extra high security mesh fence made from a type of strong welded mesh panel with small mesh opening. It is extremely difficult to penetrate and difficult to attack using conventional hand tools. Has the features of anti-climbing and anti-cutting. The fence name 358 comes from its panel mesh opening 3" × 0.5" × 8 gauge - approximate to 76.2 mm × 12.7 mm × 4 mm mesh opening.

358 mesh fence Features:

Anti-climbing: more small openings, no toe or finger holds.
Anti-cut: robust wire and welded joints make cutting very difficult by bolt cutters and wire cutters.
High strength welded at each intersection.
Durable: covering Galfan and polymer powder coating ensure a long service life.
Mesh fencing specially configured to provide maximum visibility, especially used for emergency and electronic detection systems.

358 Wire Mesh Fence Panels 4000mm Height Fence Panels

358M-01: Anti-cutting 358 mesh fencing

358M-02: Anti-climbing 358 mesh fencing

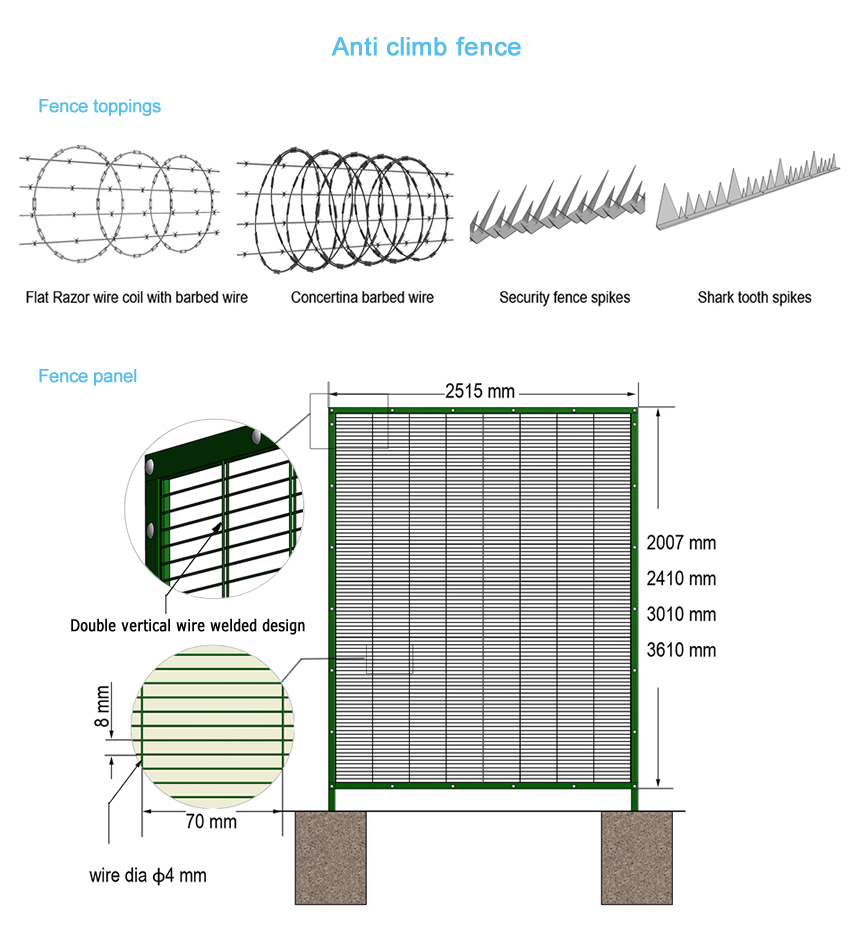

The panels are made of heavy mesh with a high level of security in width 2515 mm and a height of 2007 mm to 3302 mm. Several panels can be installed on top of each other. Thus may be achieved a total height of 6300 mm.

358 mesh panel size

Mesh pattern: 76.2 mm (3") × 12.7 mm (0.5") resistance welded well at each intersection.
Wire diameter: 4 mm horizontal wire and vertical Wire.
Weld strength: range 540–690 N/m2.
Surface treatment: 358 mesh fence panels made from galfan wire, then PVC powder coating (Min. 100 micron), or PVC powder painting. It provides additional protection and increases the potential life span.
Colors: Green RAL 6005, or Black RAL 9005.

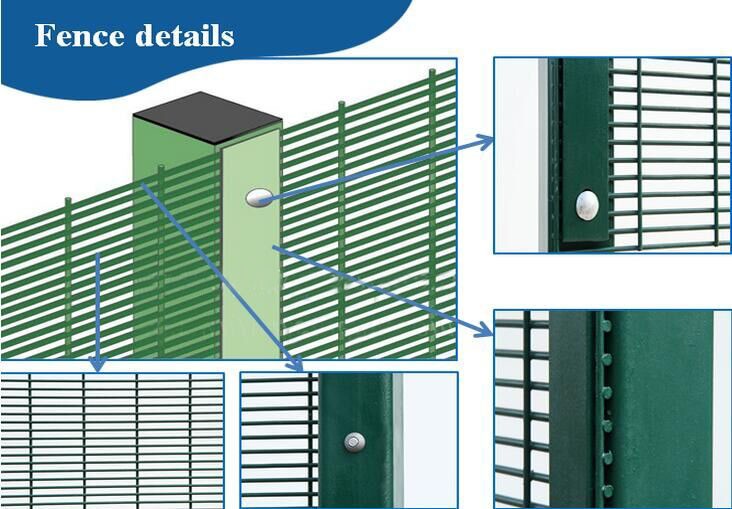

Installation: Overlapped 75 mm minimum at each post (See pictures 358M-05 and 358M-06) for securing with slotted clamp bars and M8 diameter bolts.

358M-03: 358 fence panel with mesh size length 76.2 mm

358M-04: 358 fence panel with mesh size height 12.6 mm

Fence posts

Material: high grade steel for maximum strength and rigidity.
Post section: 60 × 60 mm, 80 × 80 mm, 100 × 100 mm or 120 × 120 mm.
Post Plate thickness: 2.5/3.0/4.0/5.0 mm.
Finish: inside and outside galvanized (Min. 275 g/m2), subsequently covered with a polymer powder (Min. 60 micron ).
Colors: Green RAL 6005, or Black RAL 9005.
Post cap: metal caps or plastic cap.
Metal clips and clamps are hot dip galvanised then powder coating in green or black color.

Table-1: 358 Mesh Fence Specifications
Fence height (m)	Panel size (Height × Width) (mm)	Fence Post (Height × Size × Thick) (mm)	Clamp Bar(mm) (Height × Width × Thick) (mm)	Interior or corner Clamp No. (pcs)
2.0	2007 × 2515	2700 × 60 × 60 × 2.5	2007 × 60 × 5.00	7 or 14
2.4	2400 × 2515	3100 × 60 × 60 × 2.5	2400 × 60 × 5.00	9 or 18
3.0	2997 × 2515	3800 × 80 × 80 × 2.5	2997 × 80 × 6.00	11 or 22
3.3	3302 × 2515	4200 × 80 × 80 × 2.5	3302 × 80 × 6.00	12 or 24
3.6	3607 × 2515	4500 × 100 × 100 × 3.0	3607 × 100 × 7.00	13 or 26
4.2	4204 × 2515	5200 × 100 × 100 × 4.0	4204 × 100 × 8.00	15 or 30
4.5	4496 × 2515	5500 × 100 × 100 × 5.0	4496 × 100 × 8.00	16 or 32
5.2	5207 × 2515	6200 × 120 × 120 × 5.0	5207 × 100 × 8.00	18 or 36

358M-05: When install 358 fence on post need overlapped 75 mm minimum at each post

358M-06: Black 358 mesh fencing used for protection of residential.

358M-07: 358 security mesh panels package

358 high security fences are packaged in plastic film then stored and transported on wooden pallets. Each package is firmly attached to the pallet by a special type tape.

Application: as an anti-climb & anti-cut through barrier, 358 welded wire extra high security fence is designed with maximum security in mind. It is ideally suitable for electronic alarm and detection systems, fencing in prisons, military sites, and airports, industrial and commercial properties, warehouses, power plants, offshore petrochemical facilities, seaport Perimeter, laboratories, secure hospitals, schools, parks, leisure and recreational areas. 358 fence will give them a long lasting and secure perimeter protection with attractive appearance. Generally, 3.60 m height fence is used in schools, parks, leisure and recreational areas, 5.20 m height fence widely used in prison and military establishments.

2D Security Fencing with 4 mm double horizontal wire and 6 mm vertical wire for greater strength.

This panels increase strength by 6 mm vertical wire and additional 4 mm wires at 152.4 mm centres on the inside face. So it has double horizontal wires at 152.4 mm centres. This structure makes the fence panel very rigid and has a higher level of strength and security than common 358 mesh fence. 2D Security Fencing is widely used for schools, industrial sites, infrastructure, and high security areas.

358M-08: Green color powder coating 2D security fencing with 6 mm vertical wire and 4 mm double horizontal wire

358M-09: Details of 2D security fencing panel installed on post

2D security fencing Specifications

Mesh opening: 76.2 mm × 12.7 mm welded at each intersection.
Horizontal wires: 4 mm diameter at 12.7 mm centres on the attack face, and intermittent 4 mm double wires at 152.4 mm centres on the inside face.
Vertical wires: 6 mm diameter at 76.2 mm centres.
The post has a single row of M8 threaded inserts which allow the panels to be but fitted with specialised pressed steel brackets and are pitched at 2.55 m centres.
Panel width, height, finish, fence post and clamps is the same to 358 mesh fence, please see table-1.

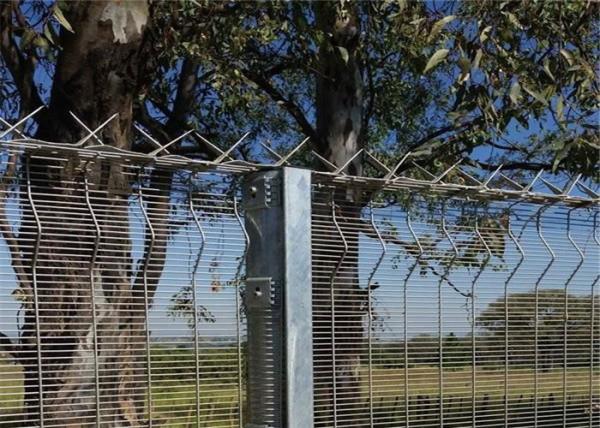

358M-10: 3D security mesh panel with a V beam installed on a post with a V beam

3D security fence enhanced its appearance with pressed horizontal 'V' shaped beams.

3D security fence is similar to 358 mesh fence, and they are both made from 4.0 mm wire in 12.7 × 76.2 mm mesh pattern. But 3D security fence enhanced its appearance with pressed horizontal 'V' shaped beams. It is a unique barrier solution which combines a high level of safety and aesthetic appearance. Usually, 3D security fencing is recommended for schools, recreational areas, hospitals, railways, port, airport, warehouses and industrial facilities or commercial.

Table-2: 3D security fence system specifications
Panels			Posts
Fence height	Panel Size Height/Width	Number of Beams	O/A Length	Material and fixing clamps
Fence height	Panel Size Height/Width	Number of Beams	O/A Length	Interior		Corners
m	mm		mm	Material mm	Clamps No.	Material mm	Clamps No.
2.0	2000 × 2515	2	2700	80 × 60 × 2.0 RHS	6	80 × 80 × 2.5 SHS	12
2.4	2400 × 2515	3	3100	80 × 60 × 2.0 RHS	7	80 × 80 × 2.5 SHS	14
3.0	3000 × 2515	3	3800	80 × 80 × 2.5 SHS	10	80 × 80 × 2.5 SHS	20

358M-11: 3D security fencing panel

358M-12: 3D security fencing offers a high level of safety and aesthetic appearance barrier solution for trees area.

358 Wire Mesh Fence Panels 4000mm Height Fence Panels Images
