Flexible stainless steel cable mesh

Name: Flexible stainless steel cable mesh
Brand: LNF-ROPE MESH
Price: 12.88 USD

China Flexible stainless steel cable mesh wholesale

Brand Name : LNF-ROPE MESH

Model Number : ROPE MESH 2"

Certification : ISO

Place of Origin : AUSTRALIA

MOQ : 100sqm

Price : 12.88$/m2

Payment Terms : Western Union, MoneyGram, T/T, L/C

Supply Ability : 10000 sqm per week

Delivery Time : 5 work days

Packaging Details : Australia Standard Stillage

Material : Stainless Steel Wire,316L stainless steel,Galvanized Steel Wire

Application : Protecting Mesh,Filters,Woven Wire Mesh,decorative cable mesh

Type : Rope Mesh,Weave Wire Mesh,Reinforced Mesh,knotted mesh and ferrule mesh,stainless steel decorative wire mesh

Weave style : Plain Weave,Dutch Weave,Twill,handmade,Dutch-Twill Weave

Technique : Woven,Welded Mesh,Perforated,Weave

Feature : Corrosion Resistance,Flexible,durable,high-strength,Rust-Resistance

Wire diameter : Requirement,0.019mm to 2.32mm,0.02mm-0.5mm,1x7 7x7 7x19 or customized,1/16"

Usage : filter,Protection,decorative wire mesh,oil,aviary mesh

Hole shape : Diamond,Square Hole,Rectangular,as per requirement,round hole

Color : Silver,requirement,gold,blue or as your request,Red/yellow/green/blue;customized

Product name : SS 304 decorative wire mesh,smoking pipe filters,X-tend Kontted Type Stainless Steel Inox Cable Wire Rope Mesh,304 316 316L stainless steel bird cage wire rope/aviary mesh,Stainless Steel Wire Rope Net/Stainless Steel Cable Mesh for Bird

Width : 0.1m-8m,2-4m,Cunstomized,0.914m~1.83m,1.5m

Length : 30m,2-4m,30m per roll or as required,1-30m,30m/roll 50m/roll

Surface treatment : polishing,black/ pre-gal/hot dip gal,Mill.Coloer Finish

Sample : Available,Free

Mesh size : 8-500 mesh,20mm-160mm,as your requirement

Size : 3"*3",4"*4",1"*1",1.5"*1.5",Customized

Advantage : Superior wire,no noise,corrosion resistance,High strength,Wear-resisting

Aperture : 25-100mm,75-2800 Micron,1" 2"x2" 3"x3" 4 or customized

Contact Now

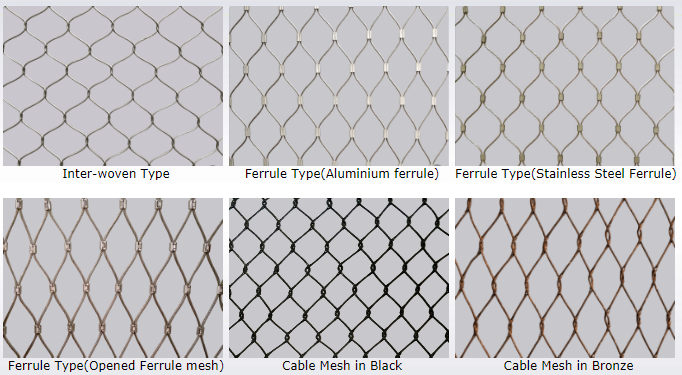

Flexible stainless steel cable mesh is the characteristic leading product of Wire Mesh Plant, which has been manufacturing the product since 2006. The Plant's independent developed types of equipment and skilled techniques can ensure high-quality products and good service worldwide. Flexible stainless steel rope mesh is made from s.s.wire rope in various material types like SUS304, SUS304L, SUS316, SUS316L etc. Two main strands structures:7*7 and 7*19. Our mesh products are supplied in two main series according to weave types: Inter-woven and ferrule. The ferrule type series is sub-divided into aluminium alloy mesh and stainless steel mesh by the ferrule material. Also, our company can colour the stainless steel cable mesh through unique processes; we can make the mesh into Black, Bronze, etc.

Flexible stainless steel cable mesh

Specification Flexible stainless steel cable mesh

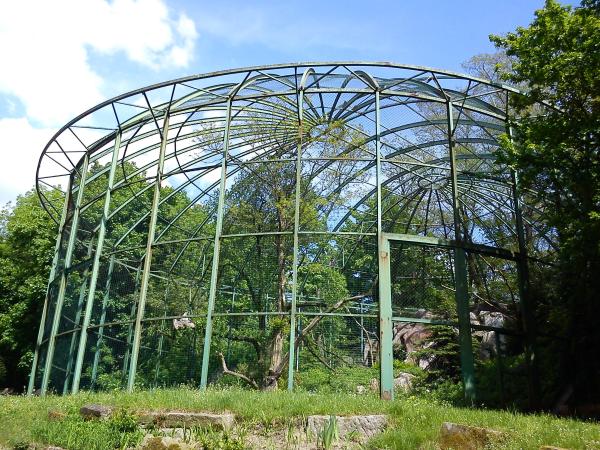

Our normal mesh specification is : cable dia.1mm-4mm and meshsize:20mm-160mm. Apart from the normal specifications, we can customise other mesh specifications in different cable diameters and mesh sizes. Flexible stainless steel cable mesh, an inter-woven type, is usually used in animal or birdcages, also called zoo mesh. The mesh has strong tensile strength, high flexibility, high transparency, and a wide span. The flexible s.s. Compared with other mesh products, cable mesh has unreplaceable advantages in practicability, security, aesthetic property, durability, etc.

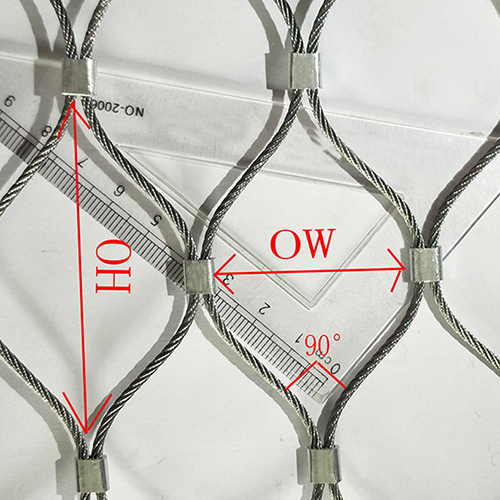

Parameters Knotted Inter-woven wire cable mesh

Flexible Stainless Steel Cable Mesh(Inter-woven Type)
Item No.s	Cable Diameter		Mesh Opening Size		Normal Break
	inch	mm	inch	mm	lbs.
BMP-3212W	1/8	3.2	4.75 x 4.75	120 x 120	1,600
BMP-3210W	1/8	3.2	4 x 4	102 x 102	1,600
BMP-3290W	1/8	3.2	3.55 x 3.55	90 x 90	1,600
BMP-3276W	1/8	3.2	3 x 3	76 x 76	1,600
BMP-3250W	1/8	3.2	2 x 2	51 x 51	1,600
BMP-2410W	3/32	2.4	4 x 4	102 x 102	920
BMP-2490W	3/32	2.4	3.55 x 3.55	90 x 90	920
BMP-2476W	3/32	2.4	3 x 3	76 x 76	920
BMP-2460W	3/32	2.4	2.4 x 2.4	60 x 60	920
BMP-2450W	3/32	2.4	2 x 2	51 x 51	920
BMP-2076W	5/64	2.0	3 x 3	76 x 76	676
BMP-2060W	5/64	2.0	2.4 x 2.4	60 x 60	676
BMP-2050W	5/64	2.0	2 x 2	51 x 51	676
BMP-2038W	5/64	2.0	1-1/2 x 1-1/2	38 x 38	676
BMP-1676W	1/16	1.6	3 x 3	76 x 76	480
BMP-1650W	1/16	1.6	2 x 2	51 x 51	480
BMP-1638W	1/16	1.6	1-1/2 x 1-1/2	38 x 38	480
BMP-1630W	1/16	1.6	1.2 x 1.2	30 x 30	480
BMP-1625W	1/16	1.6	1 x 1	25.4 x 25.4	480
BMP-1238W	3/64	1.2	1-1/2 x 1-1/2	38 x 38	270
BMP-1230W	3/64	1.2	1.2 x 1.2	30 x 30	270
BMP-1225W	3/64	1.2	1 x 1	25.4 x 25.4	270
BMP-1220W	3/64	1.2	4/5 X 4/5	20 x 20	270

Parameters Flexible stainless steel cable mesh

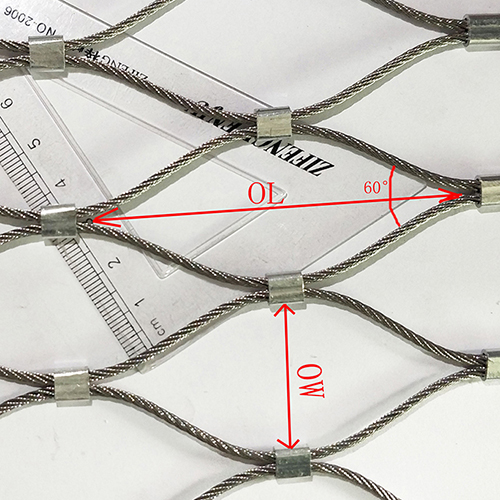

Flexible Stainless Steel Cable Mesh(Ferrule Type)
Item No.s	Cable Diameter		Mesh Opening Size(W×H)		Normal Break
	inch	mm	inch	mm	lbs.
BMP-32120F	1/8	3.2	4.75 x 8.23	120 x 207.8	1,600
BMP-32102F	1/8	3.2	4 x 6.9	102 x 176.7	1,600
BMP-3290F	1/8	3.2	3.55 x 6.15	90 x 156	1,600
BMP-3276F	1/8	3.2	Three x5.2	76 x 131.6	1,600
BMP-3251F	1/8	3.2	Two x3.46	51 x88.3	1,600
BMP-24102F	3/32	2.4	4x6.9	102x176.7	920
BMP-2490F	3/32	2.4	3.55x6.15	90x 156	920
BMP-2476F	3/32	2.4	3 x 5.2	76x 131.6	920
BMP-2460F	3/32	2.4	2.4x 4.16	60x 104	920
BMP-2451F	3/32	2.4	2x3.46	51 x 88.3	920
BMP-2076F	5/64	2.0	3 x 5.2	76 x 131.6	676
BMP-2060F	5/64	2.0	2.4x 4.16	60 x 104	676
BMP-2051F	5/64	2.0	2 x 3.46	51 x 88.3	676
BMP-2038F	5/64	2.0	1-1/2 x 2.6	38 x 65.8	676
BMP-1676F	1/16	1.6	1.2 x2.08	76 x 131.6	480
BMP-1651F	1/16	1.6	2x 3.46	51 x 88.3	480
BMP-1638F	1/16	1.6	1-1/2 x 2.6	38 x 65.8	480
BMP-1630F	1/16	1.6	1.2x2.08	30 x 52	480
BMP-1625F	1/16	1.6	1 x 1.73	25.4 x 44	480
BMP-1238F	3/64	1.2	1-1/2x2.6	38 x 65.8	270
BMP-1230F	3/64	1.2	1.2 x 2.08	30 x 52	270
BMP-1225F	3/64	1.2	1 x 1.73	25.4 x 44	270
BMP-1220F	3/64	1.2	4/5 x 1.39	20 x 34.6	270

Applications

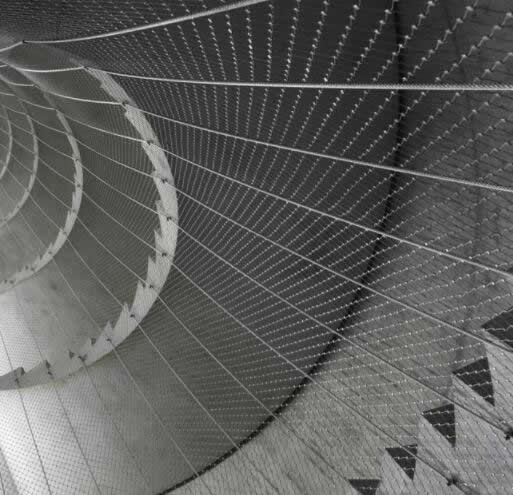

The stainless steel cable mesh, especially the ferrule type mesh, is more used in fields like balustrades on bridges and staircases, large barrier fences, and building facade trellis systems. As an emerging architectural decoration and protection product, stainless steel rope mesh has provided modern architectural decoration and horticulture engineering with a new and stylish element, which is getting more and more appreciated by designers and clients worldwide.

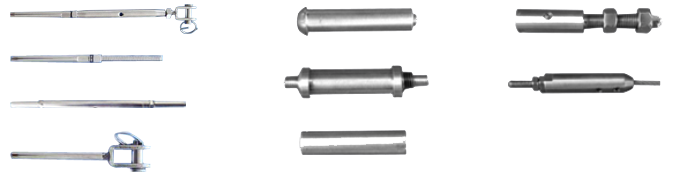

Accessories

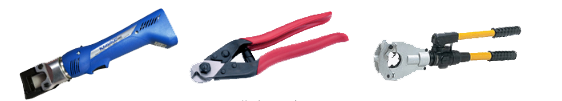

BMP company can provide various accessories to install stainless steel cable mesh according to our customer's requirements, including ferrules, cable wire, connectors and tools. Our company has finished several important projects in recent years, provides stainless steel cable mesh and service in good quality for our clients, helps them design the options and install the stainless steel cable mesh, and received a good reputation from our clients worldwide. If you are interested in our products, please contact us. We would also love to give you our practical advice and full support on specification choices and installation schemes.

Flexible stainless steel cable mesh Images
