Brand Name : Anti-Cut-Climb Fence
Model Number : 358 wire customized
Certification : |Hot Dipped Galvanized To Be AS/NZS1163 |Powder Coated To Be AS/NZS4506-1998|
Place of Origin : New Zealand And Australia Design
MOQ : 100 unit
Price : 29.88$
Payment Terms : TT 30% deposit balance 70% at sight of done cargo
Supply Ability : 10001
Delivery Time : 7 days
Packaging Details : Metal Pallet With Plastic Jacket
Materials : Q235 Steel
Types : Fencing, Trellis
Finish : Powder Coated & Hot Dipped Galvanized
Diameter : 2.5mm /3.00mm/3.2mm/4.00mm/6.00mm
Color : All Ral Colors
Mesh : 12.7mm*76.2mm /3"x0.5"
Feature : Anti Cut /Climb
Type : Fencing,Trellis & Gates,Welded Mesh
Metal type : Steel,Iron,High quality carbon steel wire,Low carbon steel
Frame material : Metal
Frame finishing : Powder Coated,PVC Coated,Hot dipped galvanized,galvanized
Pressure treated wood type : Heat Treated,Nature,Chemical
Product name : 358 Welded Mesh Fence,factory galvanized steel wire welded panel 358 fence,prison 358 fence,factory direct supply cyclone wire fence price philippines
Material : Galvanized Iron Wire,Low-Carbon Iron Wire,Low Carbon Steel Wire,High quality carbon steel wire,PVC coated wire
Surface treatment : Galvanized+PVC Coated,Hot Dipped Galvanized,PVC Coated,PVCcoated,Galvanized/Powder Coated/PVC coated
Application : Fence Mesh,Construction Wire Mesh,Prison,Protecting Mesh,District guardrail
Wire diameter : 4.0mm,etc
Height : 1.8m,3m,2.4m,2m
Width : 2.0m-2.5m
Packing : Plastic film& wooden pallet,Skecth film paper and pallet,plastic film + metal pallet
Wire gauge : 3mm - 6mm
Usage : Protection,Anti-climbing,Prison wire mesh fence
Hole shape : Square,rectangle
Length : 2.0m,Customized
The 358 anti-climb fence is designed to provide a very high level of security that is almost impossible to climb, with the narrow apertures of the mesh preventing any intruder gaining a foothold, whilst retaining a good level of visibility and an aesthetically pleasing appearance. This system is used extensively by the Ministry of Defence around high security sites.
358 mesh panel | |
Height | 1.8m-3m |
Width | 2m, 2.2m, 2.5m, 3m |
Mesh Opening: | 3" X 0.5" X 8 Gauge Wire(12.7mm X 76.20mm Wire) |
Feature: | Anti Cut ,Anti Climb |
Curves | On request |
Material | Low carbon steel wire, galvanized wire |
Surface treatment | Galvanized + powder coated |
Post | |
Length | On request(Normal 2.3m-4m) |
Square post | 60x60mmx3mm, 80x80mmx3mm |
Round post | 80mmx3mm |
C post | 62x83mmx3mm |
Cover steel plate | On request |
Single Arm or Double Arm | On request |
Tension Wire or Barbed Wire | On request |

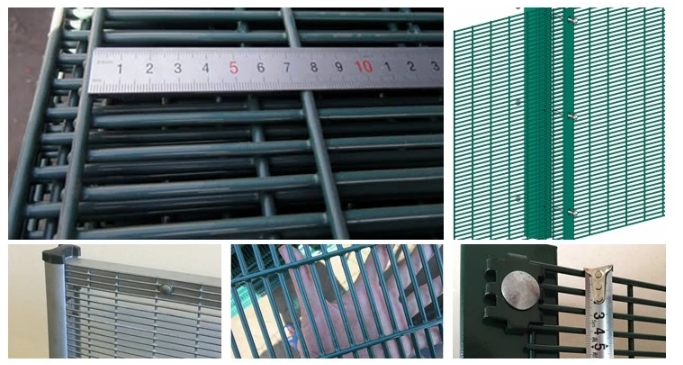

Detailed Images
>>Weld strength is 75% of the minimum tensile strength of the wire (tensile range 540-690 N/m²).
>>this system combines an anti climb and anti cut fence with excellent through visibility and resistance to vandalism.
>>Extra length panels can be supplied for burying 300mm below ground to prevent burrowing.
>>An adhesion coating is applied to allow perfect adhesion with the polyester coating (min. 100 micron).
>>Posts are polyester coated with a galvanized substrate in accordance with Euro norm 10147.
Panel packing:
<1>Plastic film at the bottom to avoid the panel be destroyed
<2>4 metal corners to ensure the panel strong and uniform
<3>wood plate at the top of pallet to keep the under panel
<4>pallet tube size:40*80mm tubes at the botom vertical position
Fence post packing:
<1>plastic cap cover onto the post
<2>plastic film +metal pallet for fence pot
Accessories packing:
<1>stainless steel nuts and screws install with clips
<2>5 sets clips load into one plastic bag
<3>12 bags into one carton box
![]() |
358 anti-climb fence 3" X 0.5" X 8 Gauge Wire(12.7mm X 76.20mm Wire) with the V fold Images |
